Style curve drag handle dimensions

  • April 18, 2019
  • 1 reply
  • 1694 views

Hi everyone,

I'm currently using CREO 3.0. I can't show drag handle dimensions for a style curve on surface by clicking edit. I have to edit definition of the style feature. It would be nice if those dimensions could be shown and even used in relations. Does anyone know if this can be done in later versions of CREO?

Thanks!

Best answer by BHOoi

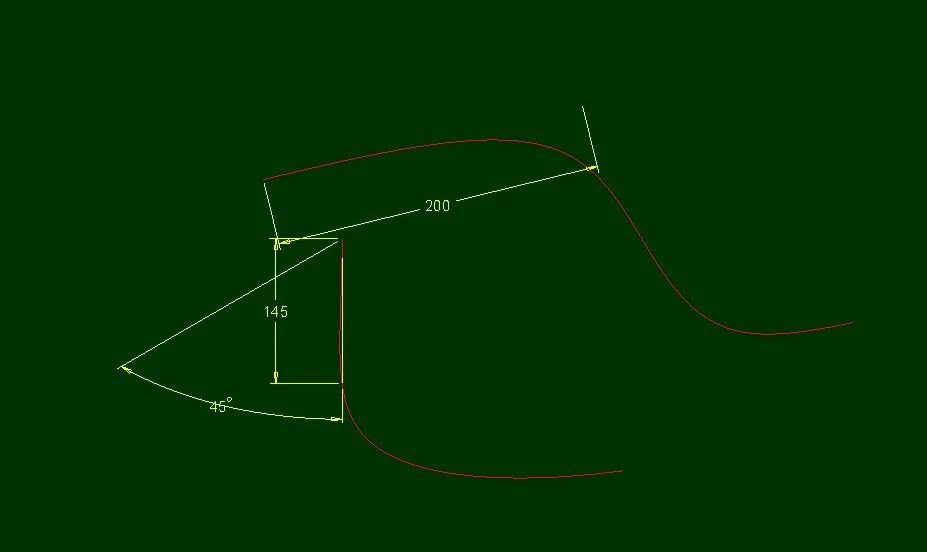

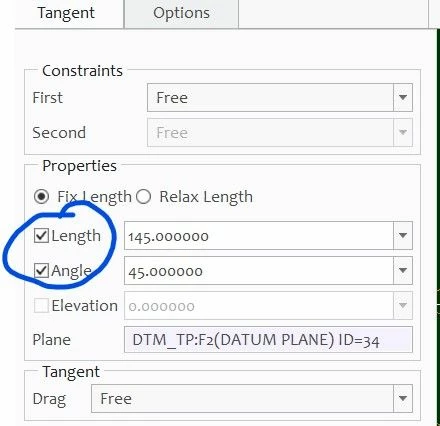

Hi, I am on Creo 4. I was never on Creo 3 but I believe it should work the same. To allow editing dimensions outside style feature, you need to check the box next to it during definition. See the snapshots below:s1.jpgs2.jpg



Is this what you are trying to do?



1 reply

B
BHOoi16-PearlAnswer
16-Pearl
April 19, 2019

Hi, I am on Creo 4. I was never on Creo 3 but I believe it should work the same. To allow editing dimensions outside style feature, you need to check the box next to it during definition. See the snapshots below:s1.jpgs2.jpg



Is this what you are trying to do?



    D
    DaveIgnaczak10-MarbleAuthor
    10-Marble
    April 19, 2019
    Awesome thanks!
