exploded view rotation angle incorrect in creo 4.0

  • October 23, 2020
  • 1 reply
  • 2323 views

Hi community,

I have a struggle with an exploded assembly, more specific the rotating portion in the exploded view.

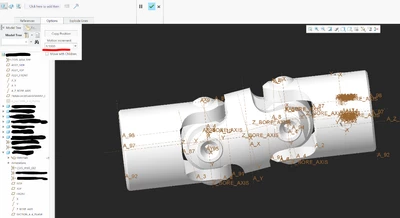

When I go into explode on the assembly and instead giving a distance I give an angle and

select the rotating axis and the components I want to rotate around the selected axis,

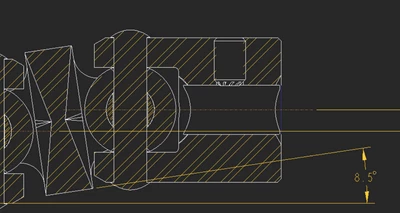

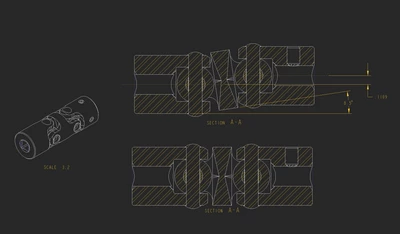

it does so…but…the specified angle in my case 9.5 Deg shows up on the drawing as 8.5 Deg















Anybody else has had this issue? Anybody has a fix for this?

Any help will be highly appreciated

Thanks in advance

Andreas

Best answer by kdirth

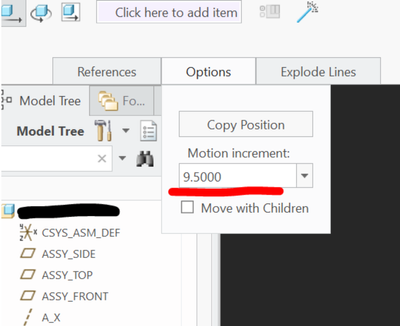

Did you happen to move it in the negative direction?  One direction the angle value will go up by your increment (9.5).  The other direction, it will give you a value somewhere below 360 based on multiples of your increment (9.5).  Given your increment of 9.5, the first multiple below 360 is 351.5.  That is 8.5 degrees from your start.  Watch the number in the tool bar.

1 reply

kdirth
21-Topaz I
kdirth21-Topaz IAnswer
21-Topaz I
October 29, 2020

Did you happen to move it in the negative direction?  One direction the angle value will go up by your increment (9.5).  The other direction, it will give you a value somewhere below 360 based on multiples of your increment (9.5).  Given your increment of 9.5, the first multiple below 360 is 351.5.  That is 8.5 degrees from your start.  Watch the number in the tool bar.

There is always more to learn.
    S
    swiss-design4-ParticipantAuthor
    4-Participant
    October 30, 2020

    Hi kdirth,

    Thank you for your reply, and thank you for solving my issue.

    I would have never guessed that the positive or negative angle call out would make a difference,

    Since you have the choice with the direction arrow to choose in which direction you would like

    To rotate your parts in the exploded view.






    Thank you so much

    Andreas
