Sketcher Diagnostics Tool - 2 new Config.pro Options

  • June 12, 2012
  • 3 replies
  • 1707 views

There are two very useful options in the Sketcher Diagnostics Tool, which can save you a lot of trouble:



"Shade Closed Loops" and "Highlight Open Ends"



config.pro options would be very useful to activate the two options.



Today we do it via a mapkey during startup, which opens a sketch and clicks both options on, very nonprofessional.



My proposal:



sketcher_diagnostics_shade_closed_loops     yes/no

sketcher_diagnostics_highlight_open_ends     yes/no

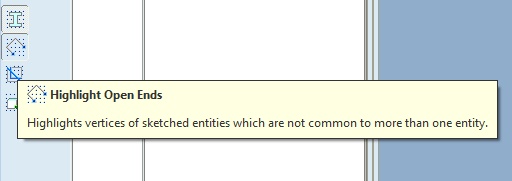

closed_loops.jpg open_ends.jpg

3 replies

1-Visitor
June 12, 2012

In Creo 1.0 and Creo 2.o they exist.

17-Peridot
June 13, 2012

Starting Creo Parametric 1.0, set the config.pro options:

  • sketcher_shade_closed_loops yes/no
  • sketcher_highlight_open_ends yes/no
1-Visitor
June 14, 2012

Very good enhancements for Creo 1.0, but it is missing from the What's new PDF guide.I just got it.
