Creo Simulate Force & Moment graphs?

gchen-5
1-Newbie

Creo Simulate Force & Moment graphs?

Hi, I'm trying to create some Force & Moment diagrams for a simply supported beam, with a pin support on the left side and a roller support on the right side, and some distributed and point loads.

The problem is that I can't find the option to make these diagrams.

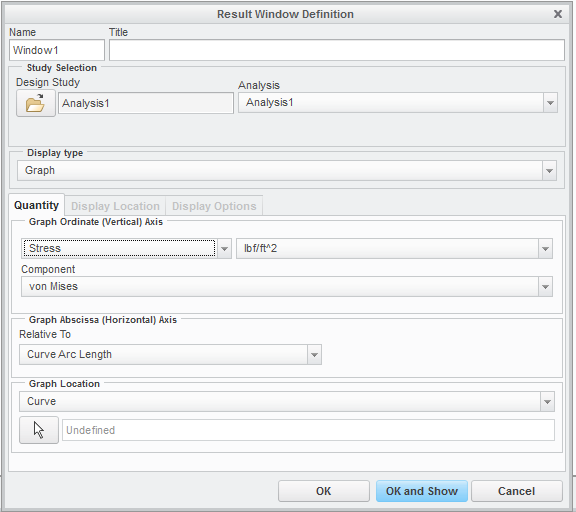

I've read several tutorials that said to do this, open the Results Window Definition, select the Graph Display Type, and select Force & Moment under Quantity.

However, there is no such option in my software. I'm using Creo Simulate 3.0 M080



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
1 REPLY 1

I'm not sure what fixed the issue, but I constructed the beam from a line this time and used point datums as reference points for forces instead of manually creating lines for the purpose.
