Is there a way to capture the path of a specific point from an animation created in Creo?

  • October 12, 2015
  • 1 reply
  • 3981 views

I have an interconnected gear setup with arms attached to the gears.  When the gears move, the arms move at an unspecified path.  I would like to be able to find out the exact path on the unattached end of the arms, so I can create additional features, such as a groove or use the path for something else.  Does Creo have this ability or is there another software that can capture the animation and generate this path?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by GabrielZaha

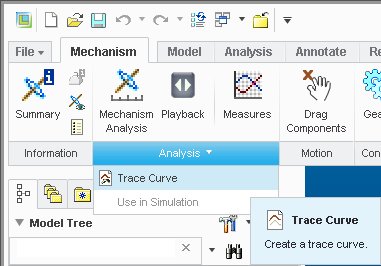

First you need to define/run a motion analysis. Then in Mechanism tab, under Analysis select "Trace Curve"

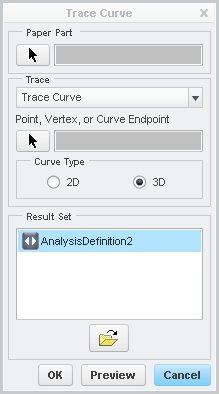

In the Trace Curve dialog you need to select the "Paper Part" - This is where the curve will be created


Next select the point in the center of the unattached arm and the result set.

The result will be a group containing a coordinate offset datum point feature and a curve "through points".

1 reply

G
GabrielZaha14-AlexandriteAnswer
14-Alexandrite
October 13, 2015

First you need to define/run a motion analysis. Then in Mechanism tab, under Analysis select "Trace Curve"


In the Trace Curve dialog you need to select the "Paper Part" - This is where the curve will be created


Next select the point in the center of the unattached arm and the result set.

The result will be a group containing a coordinate offset datum point feature and a curve "through points".
