Plot XY with two different X scales

  • February 14, 2023
  • 2 replies
  • 2472 views

Hi all

Please, see the attchd.file, mathcad prime 3.1.

There is a graph where I would like to have parameters y and z related to x axis scale and parameters y2 and z2 related to x1 axis scale in the same graph. I have absolutely no idea how to define which x coresponding with which y for plots where are a several different x.

Does anybody have an idea how to do that?

Thx a lot

Rosta





Best answer by Werner_E

Simply repeat/duplicate the "x" at the abscissa.
You may also duplicate the "x1" but its not necessary as the last entry at the abscissa will be used for all subsequent traces




2 replies

W
Werner_E25-Diamond IAnswer
25-Diamond I
February 14, 2023

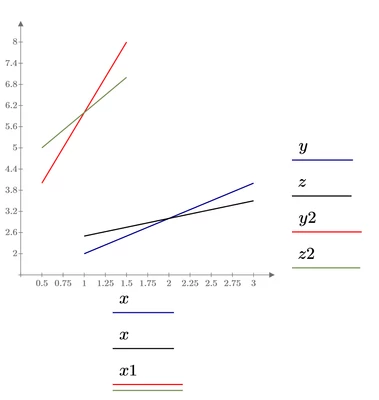

Simply repeat/duplicate the "x" at the abscissa.
You may also duplicate the "x1" but its not necessary as the last entry at the abscissa will be used for all subsequent traces




R
Rosta_Spicl5-Regular MemberAuthor
5-Regular Member
February 14, 2023

So easy, it works, cool...

Thx

V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
February 14, 2023

For me the Plot XY with two different X scales is so
