Solve Blocks Plotting Results

  • March 18, 2022
  • 2 replies
  • 2810 views

Good Morning,



I am encountering a problem with the attached file. I have created a sheet that solves siphon flow rate using a solve block. So far the calculator is able to solve for different heights (Z) if you enter this value.



Now what I wish to do is create a plot that shows the flow rates for heights varying between say 1 to 2 meters head. I have defined n number of points and created a function that returns a vector with the different heights in it this vector uses the index k and goes from 0 to n.



Now what I wish to do is run the values for Z through my solve block to get an output (V-out) which corresponds to each element of the vector Z. (e.g solve for 1m to 2m using the increments defined in the second sheet). This way I can create a plot of the values Z against the values V-out and show how the flowrate through the siphon varies with the available head.



Many Thanks,

Callum

Best answer by LucMeekes

You can make the result of the solve block a function of Z.

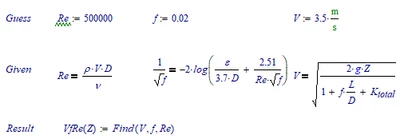

In Mathcad 11 it looks like this:


Note that VfRe(Z) is a vector function of Z. You have to take it apart in the three functions:

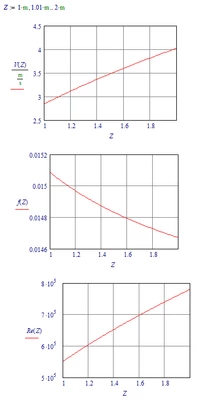

Now you can plot:


Now you build this into Prime. I've attached a Prime6 file conversion of yours, for other people to help.

Success!
Luc

2 replies

L
LucMeekes23-Emerald IVAnswer
23-Emerald IV
March 18, 2022

You can make the result of the solve block a function of Z.

In Mathcad 11 it looks like this:


Note that VfRe(Z) is a vector function of Z. You have to take it apart in the three functions:


Now you can plot:


Now you build this into Prime. I've attached a Prime6 file conversion of yours, for other people to help.

Success!
Luc

    L
    LucMeekes23-Emerald IV
    23-Emerald IV
    March 18, 2022

    Incidentally, I get somewhat different results for Z=1.5 m than what your sheet shows:

    V=3.485 m/s instead of 3.195 m/s, about 10 % more.

    f=0.01485 instead of 0.01495, almost 1 % less.

    Re=675650 instead of 619560, some 9 % more.



    Luc

      C
      Callum19951-VisitorAuthor
      1-Visitor
      March 22, 2022

      Hi Luc,



      That is interesting that the flowrate would be different. Out of curiosity what were your tolerances on the calculations? I have the standard 10^-3 on my sheet, thinking this may possibly influence the result obtained from the solve block.



      Thanks,

      Callum

      C
      Callum19951-VisitorAuthor
      1-Visitor
      March 22, 2022

      Or could it possibly be due to your minor loss coefficient? I have used a K value of 1.411 in my calculation. I have screen-shotted the other parameters.


      Thanks,

      Callum
