Question

External merge sketch is purple in color, different from other sketches

  • July 14, 2023
  • 2 replies
  • 1485 views

I am using Creo Parametric Release 4.0 and DatecodeM150

I am trying to create a schematic sketch using the external merge feature, and it is appearing purple for some reason. I have other external merge sketches that are the normal blue color, and I can't find a setting to modify this. Please advise how to change this.

    2 replies

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire II
    22-Sapphire II
    July 16, 2023

    You should provide more information and post the model or a test case model. Creo entity colors are subject to the settings of UI customizations including system color settings. You refer to a schematic sketch, in Creo this could refer to many things (routed systems, Creo schematic etc.) so you should to clarify this.

    G
    getsidgo1-VisitorAuthor
    1-Visitor
    July 17, 2023

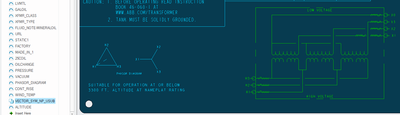

    Thank you for your reply, here is an image of what I was referring to:

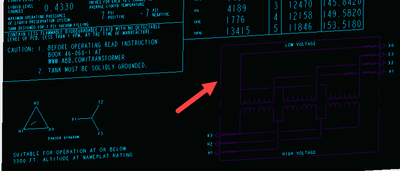

    This sketch is a external merge inside the .prt template as shown here:








    A
    Amol_Lungare16-Pearl
    16-Pearl
    July 19, 2023

    Hi @getsidgo



    Could you share the data or the steps to reproduce if it can be reproduced on a generic data?
