Solved

Save command also creates drw

  • April 27, 2022
  • 3 replies
  • 2328 views

Hi,
I can't be able to find what lets create the drw file when I make a new prt and save it.


I want the creation of drw file not always because I have many part that are only on the undercard.

But I dond' find the Creo Option that lets it but I don't think it's a Creo "matter" because in stand alone mode it doesn't. It does only with windchill.



How can I do?

Best answer by GiFra_Label

I've fixed it.
First of all, the problem accoured only when I work with the configuration of Creo that starts linked to WC. If I start the configuration "stand alone" (that "takes" other files) I haven't problems.
It seems that the problem was the presence on WC of the drawing of the start part (template part). Each time I create a new .prt it create also its .drw.
I deleted the start part's drw and now it creates the drw no more.

3 replies

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
April 27, 2022

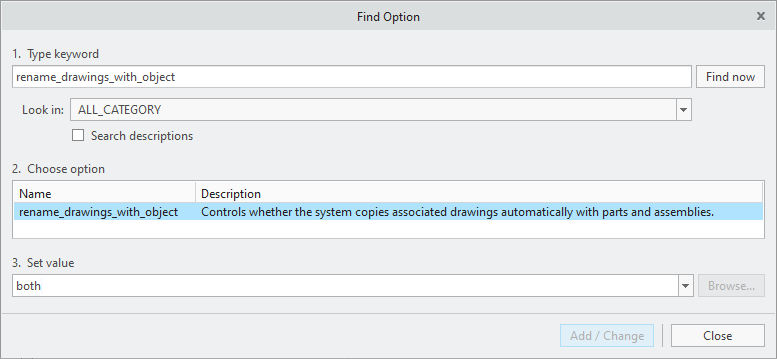

Take a look at the config option 'rename_drawing_with_object':








G
GiFra_Label12-AmethystAuthor
12-Amethyst
April 27, 2022

I've setted this option on "both" for Creo Stand Alone and linked with Windchill.
But it happens only with WC. So I don't think that this is

T
23-Emerald IV
TomU23-Emerald IV
23-Emerald IV
April 28, 2022

It works in standalone too, but the drawing must be present in the working directory and it must have the same name as the model.

J
jlecoz15-Moonstone
15-Moonstone
April 27, 2022

For information, in Creo 8 you now have the option to set the drawing name according to the CAD model automatically when creating a new drawing.

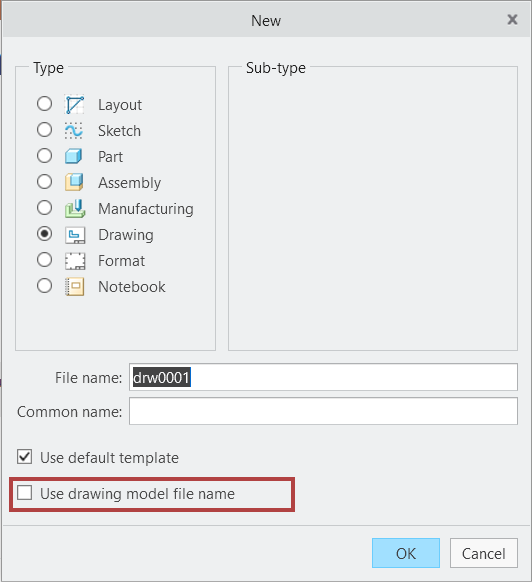

So the workflow would be to create the model first, and then create a new drawing when required using the checking the Use drawing model file name option highlighted below. The drawing will automatically have the same name as the model.




G
GiFra_Label12-AmethystAuthor
12-Amethyst
April 27, 2022

Yes, that true.

Anyway I start from the part model.

G
GiFra_Label12-AmethystAuthorAnswer
12-Amethyst
April 30, 2022

I've fixed it.
First of all, the problem accoured only when I work with the configuration of Creo that starts linked to WC. If I start the configuration "stand alone" (that "takes" other files) I haven't problems.
It seems that the problem was the presence on WC of the drawing of the start part (template part). Each time I create a new .prt it create also its .drw.
I deleted the start part's drw and now it creates the drw no more.
