Autocad file view with Product View

Hello to everyone,

I would like to share this problem and understand if anybody has the same and if there is anyone that have a solution for that.

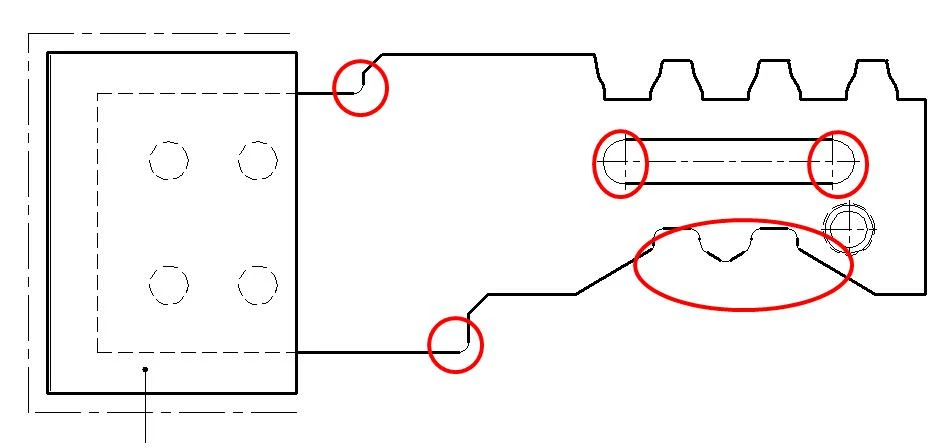

I changed the autocadpenmap.inf according to my specification, if I try to print as monochrome an AUTOCAD file I get the result shown in the picture.

Some radius with same properties in the Autocad file are printed without the pen tabel preference.

Author

4-Participant

I changed to polilines the arcs and the straight lines making a full poliline for all the borders.

I opened again the file and all the borders get the line thickness properties that I want.

Does PRODUCT VIEW use _pedit Autocad file to chenge that linethickness..???

In this case the autocadpenmap will work only for straight lines and arcs. It will not work with circles.
