Question

A file of format .U3D

  • June 10, 2011
  • 2 replies
  • 12156 views

Hello!

In Creo Elements/Pro there is a possibility to save 3D-model in a format ".u3d". At me a next question: what program-viewer (it is desirable free, like Adobe Reader for PDF 3D) it is possible to open the given format ".u3d"?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

F
FaustinoGarcia1-Visitor
1-Visitor
June 10, 2011

1) Save your file as PARTXXXX.PRT

2) Save a copy FILE>SAVE A COPY>

3) Use the extension PDF U3D

Thats all. You have a .PDF file with an object you can rotate.

And you can use Adobe Reader to see it.

You can also.

1) Save your file as PARTXXXX.PRT

2) Save a copy FILE>SAVE A COPY>

3) Use the extension U3D

There is a program called BLENDER3D, you could try it.

In a while say you if you can use the UD3 file in office.

El mensaje fue editado por: Faustino Garcia

V
24-Ruby III
VladimirN24-Ruby IIIAuthor
24-Ruby III
June 14, 2011

Hello!

Thanks for the answer. In the closed group "Arbortext Galaxy BETA" I have received the following answer:

Right Hemisphere's Deep View are able to view U3D and are free (http://www.righthemisphere.com/products/client-products/deep-view).

F
FaustinoGarcia1-Visitor
1-Visitor
June 16, 2011

Thanks.

Best regards

Faustino Garcia

V
24-Ruby III
VladimirN24-Ruby IIIAuthor
24-Ruby III
June 17, 2011

I think that these links too can be useful (for open of files of 3D-models):

PDF3D (Adobe Reader): http://get.adobe.com/reader/
VRML (Cortona3D Viewer): http://www.cortona3d.com/install.aspx
JT (JT2Go): http://bit.ly/ip4UZ1

F
FaustinoGarcia1-Visitor
1-Visitor
June 17, 2011

Adding to the list:

edrawings: http://www.edrawingsviewer.com/

cosmos player: http://cic.nist.gov/vrml/cosmoplayer.html

And if you use for PDFs:

PDFill: http://www.pdfill.com/

PDFCreator: http://sourceforge.net/projects/pdfcreator/

About Siemens .jt extension, I don't discover how to export a PROE//CREO .prt to .jt yet. I think I look for that today.

Best regards

Faustino Garcia

    V
    24-Ruby III
    VladimirN24-Ruby IIIAuthor
    24-Ruby III
    June 20, 2011

    Hello!

    Thanks for links.

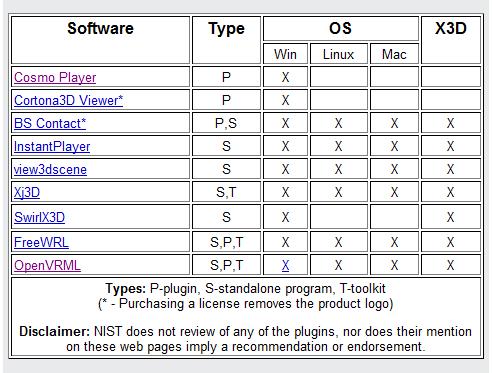

    I would like to notice also that under the specified link (http://cic.nist.gov/vrml/cosmoplayer.html) it is possible to find many links to various programs and resources on work with format VRML:


    ...About Siemens .jt extension, I don't discover how to export a PROE//CREO .prt to .jt yet. I think I look for that today...

    I think that in it there is no necessity since there are formats for an exchange 3D-given in the form of following formats (in which allows to save Creo Elements): STEP (.stp) and IGES (.igs). Here possibility of importation of format JT is more significant. For this purpose there are a plug-in adapters in Creo View (Creo Elements/View Professional 10.0) which list includes the JT-adapter.
