Datum Target Symbol Attachment Issue.

  • November 26, 2012
  • 10 replies
  • 2822 views

Hi Guys...


I am working on a requirement.if a drawing contains "Datum Target Symbol" then the attachment of that symbol to any object should notbe witharrow. it should be without arrow head. i.e (simple line). The issue is that i am using


ProDtlsyminstdataAttachtypeGet() and it returns. (any one)



PROSYMDEFATTACHTYPE_FREE,PROSYMDEFATTACHTYPE_LEFT_LEADER,
PROSYMDEFATTACHTYPE_RIGHT_LEADER, PROSYMDEFATTACHTYPE_RADIAL_LEADER, PROSYMDEFATTACHTYPE_ON_ITEM, PROSYMDEFATTACHTYPE_NORM_ITEM

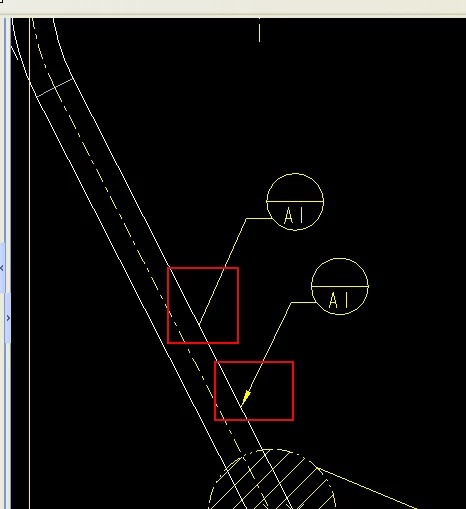

Now in drawingi have created two symbols one with arrow and one without arrow ( Please see the image ). But it returns same value for both. so how to bring the difference out... Am i heading in the rite direction or is there any other way of to do this...



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

10 replies

P
pwilliams-313-Aquamarine
13-Aquamarine
November 26, 2012
You will need the Pro/TOOLKIT for 3D Drawings license for this solution. Once you get the ProDtlsyminstdata object you can then collect the leaders using ProDtlsyminstdataLeadersCollect(). Iterate through each leader and call ProDtlattachArrowtypeGet(). This will return you the type of leader.

typedef enum
{
PROLEADERTYPE_ARROWHEAD = 1,
PROLEADERTYPE_DOT = 2,
PROLEADERTYPE_FILLEDDOT = 3,
PROLEADERTYPE_NOARROW = 4,
PROLEADERTYPE_CROSS = 5,
PROLEADERTYPE_SLASH = 6,
PROLEADERTYPE_INTEGRAL = 7,
PROLEADERTYPE_BOX = 8,
PROLEADERTYPE_FILLEDBOX = 9,
PROLEADERTYPE_DOUBLEARROW = 10,
PROLEADERTYPE_TARGET = 14,
PROLEADERTYPE_LEFTHALF = 15,
PROLEADERTYPE_RIGHTHALF = 16,
PROLEADERTYPE_TRIANGLE = 18
} ProLeaderType<progtol_h.html#proleadertype>;


Patrick Williams | Engineering Systems | c: 616.947.2110
[cid:image001.jpg@01CDCBAF.BDFD45A0]
N
nmahajan-21-VisitorAuthor
1-Visitor
November 26, 2012

Hi Patrick,


I guess i didnt find this function ProDtlattachArrowtypeGet() because i dont have 3D License. 😕


Thanks a lot man. have a nice day... 🙂

P
pwilliams-313-Aquamarine
13-Aquamarine
November 26, 2012
Nikhil,
All of the functionality of the Pro/TOOLKIT including the APIs available with the license extensions are in the API Wizard regardless of what licenses you own. It's a tease I guess?

Patrick Williams | Engineering Systems | c: 616.947.2110
[cid:image001.jpg@01CDCBC1.DA741620]
N
nmahajan-21-VisitorAuthor
1-Visitor
November 27, 2012

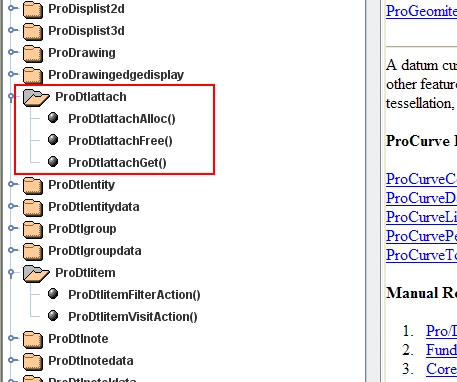

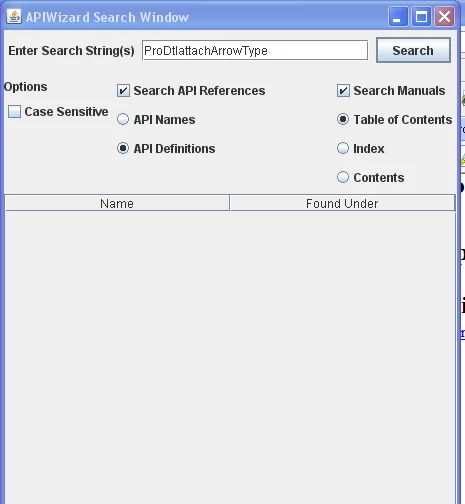

Well when i search in API Wizard i dont find this function (see images) as you mentioned that its "regardless what license you use you will find it in API Wizard" but i cant. i am working on ProEWildFire 4.0. Please correct me if i am wrong..
