How to fix default datum planes?

  • August 8, 2016
  • 2 replies
  • 4713 views

Hi everyone!

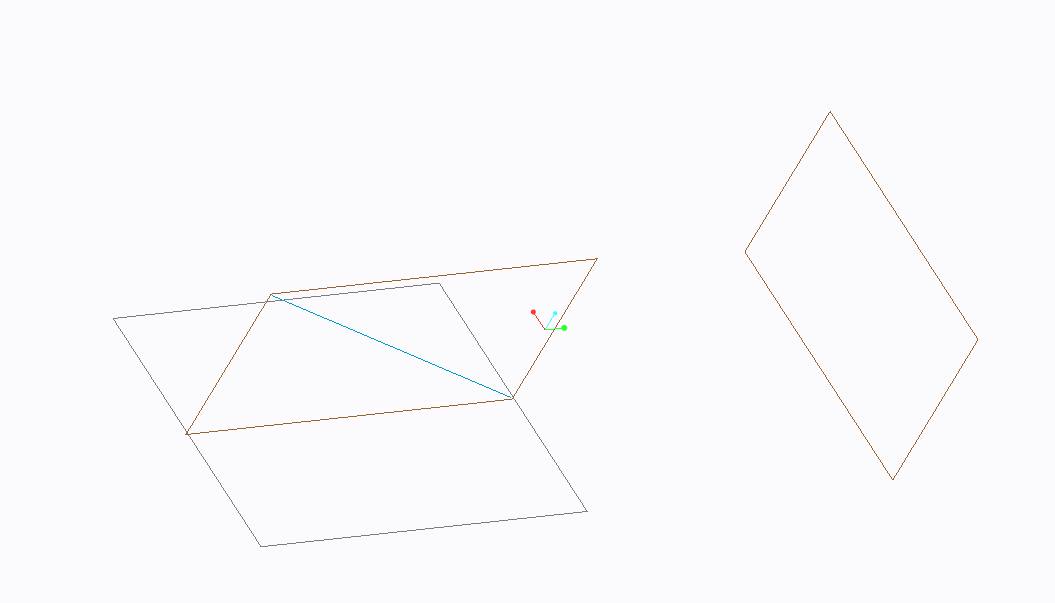

I am using Creo Parametric 3.0 and having issues with the default datum planes adjusting size and translating whenever I draw a sketch on a plane. I have attached an image below of what happens when I try and sketch a line on the "right" datum plane.


Thanks in advance!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by StephenW

A datum plane resizes by default to fit the geometry. By definition a plane is infinite in all directions but Creo is showing the plane relative to your sketch. You can change the properties for the display of the plane by edit definition on the plane, select the display tab and click the adjust outline box. There are a few options, you can set it to a specific size or you can reference geometry.

2 replies

S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
August 8, 2016

A datum plane resizes by default to fit the geometry. By definition a plane is infinite in all directions but Creo is showing the plane relative to your sketch. You can change the properties for the display of the plane by edit definition on the plane, select the display tab and click the adjust outline box. There are a few options, you can set it to a specific size or you can reference geometry.

    W
    wtai1-VisitorAuthor
    1-Visitor
    August 9, 2016

    That makes sense! Thanks for the help Stephen

    M
    mstroup1-Visitor
    1-Visitor
    August 8, 2016

    if the plane away from the geometry was created from a Coordinate system... redefine/edit the plane to be offset from the Csys at the edge/vertex/beginning of the geometry....
