[Q] How to see all failed features from assembly?

  • January 25, 2012
  • 1 reply
  • 2276 views

Is there a way to tell Pro/E to show me all failed features and missing parts from the top level assembly, including those in within sub-assemblies? Specifically things in groups can be quite elusive and not apparent without investigation.

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by KevinBradberry

If you're getting failures then the red circle that's part of the mini traffic light (red, yellow, & green circles) will be enlarged. Mine is located at the top edge of the modeling space window. Click on this red circle for a dialog box that displays the failures. I don't know what result you will get with groups.

Regards,

Kevin

1 reply

K
KevinBradberry1-VisitorAnswer
1-Visitor
January 26, 2012

If you're getting failures then the red circle that's part of the mini traffic light (red, yellow, & green circles) will be enlarged. Mine is located at the top edge of the modeling space window. Click on this red circle for a dialog box that displays the failures. I don't know what result you will get with groups.

Regards,

Kevin

D
David_M1-VisitorAuthor
1-Visitor
January 26, 2012

Thanks Kevin. That seems to be the answer (although I can't say I'm impressed by the tool).

K
KevinBradberry1-Visitor
1-Visitor
January 26, 2012

You're welcome. I agree about the tool. I don't make use of it. If you suspect failed features within groups you could expand the whole model tree and scan it for red.

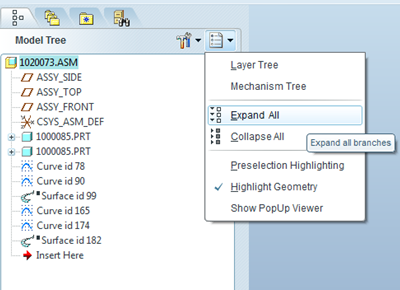

expand all model tree.PNG

When you finish and click "Collapse All" the model tree will disappear except for the top node (1020073.ASM in my image). Double click on this node to bring back your model tree.
