No humble brag here.  Show us what you're working on or have done in the past.  Impress us!

Who's got the biggest assembly??

Who has the most complex part??

Let's see it...

3 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
January 10, 2020

Here's my large assy! Unfortunately, it's almost completely obscured by rogue datum planes.

800,000 lbs of mostly steel 563" (14315mm) tall






    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 13, 2020

    This is what it looks like on in storage on a ship.




      C
      CLOUSER10-MarbleAuthor
      10-Marble
      January 13, 2020

      Looks like a lot of weldments.  how many parts?

      D
      dgschaefer21-Topaz II
      21-Topaz II
      January 13, 2020

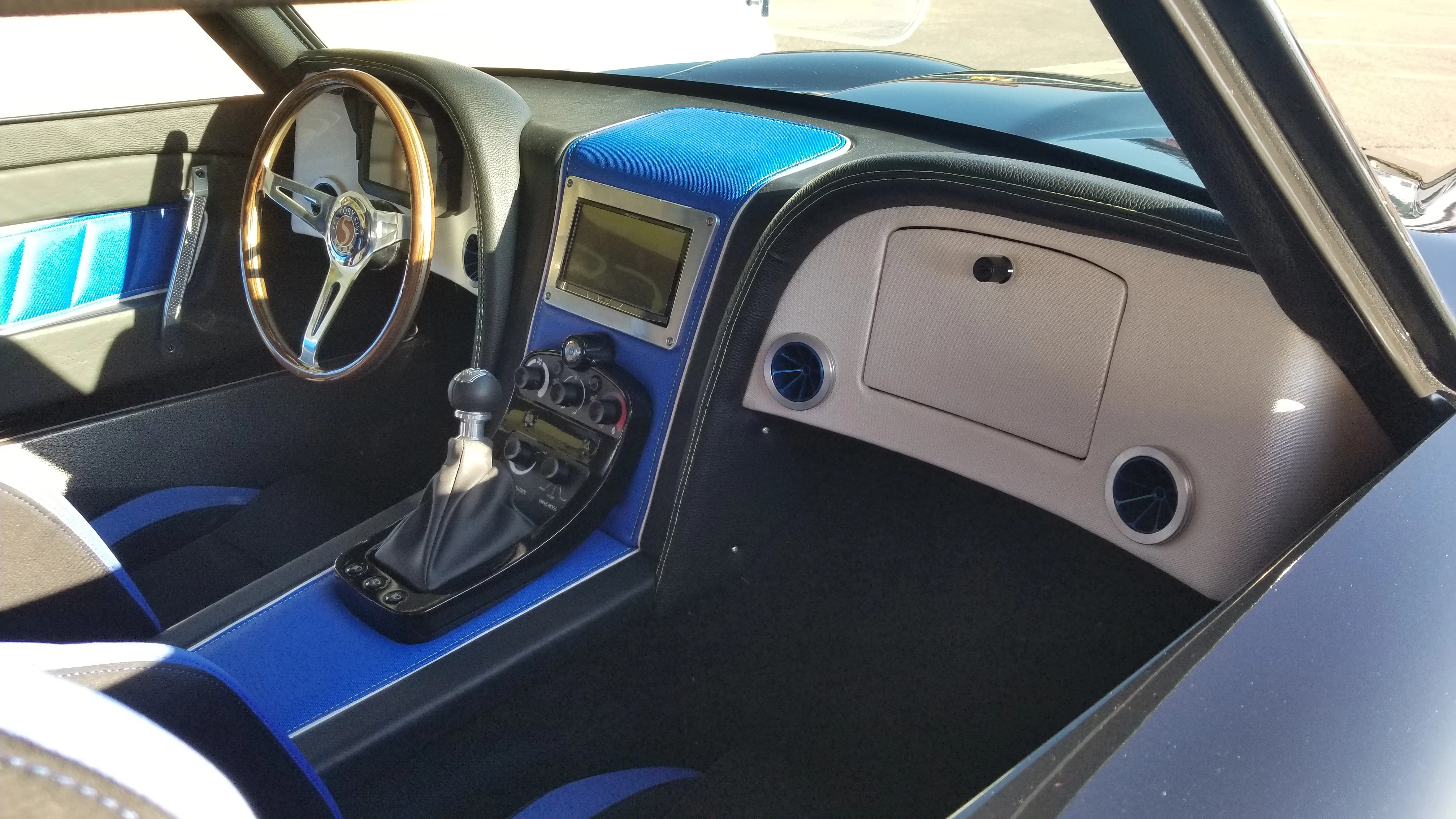

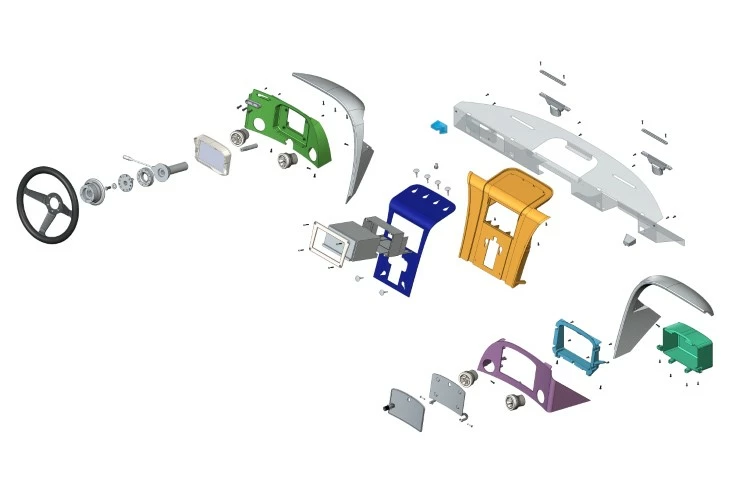

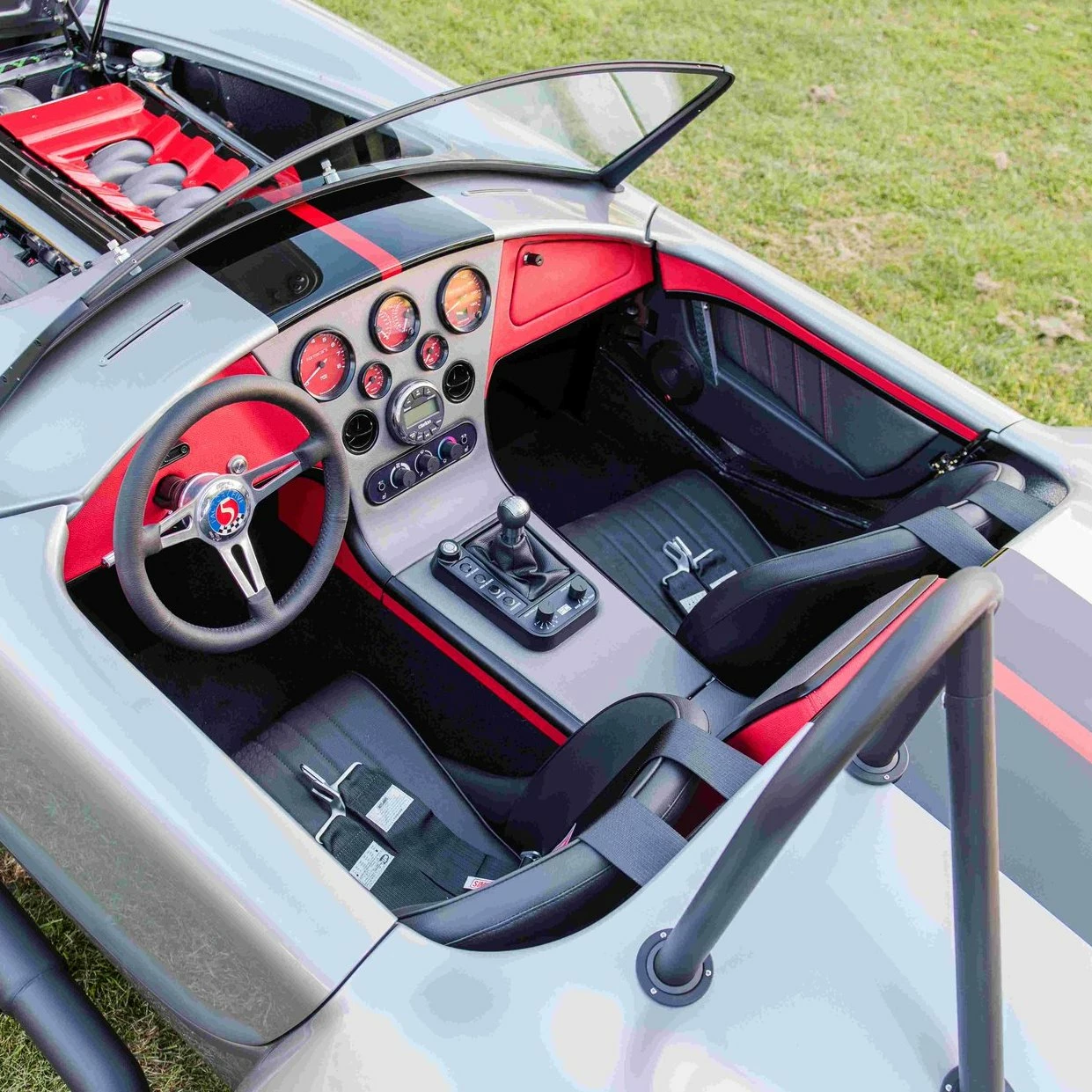

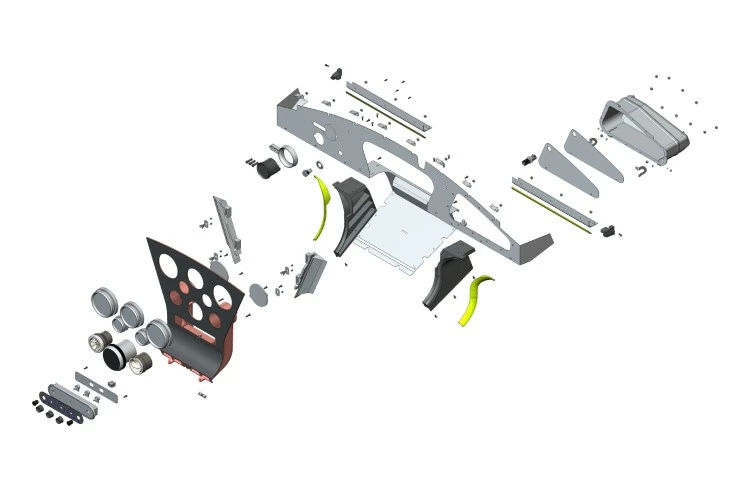

      I worked for a few years for FormaCars, a builder of custom, high end kit cars based on Factory Five kits. Their big differentiator is modern, custom interiors. The blue and white is the custom interior I developed for their Type 65 coupe builds.  A couple of CAD screenshots and a picture of the finished product.  The red and gray is for the Factory Five Mark IV (Cobra).

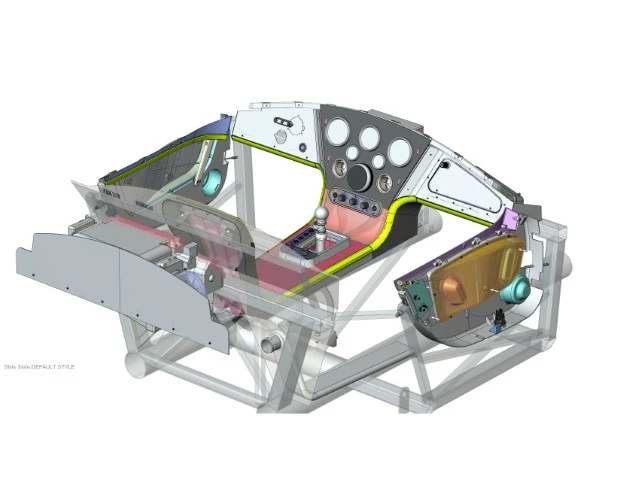

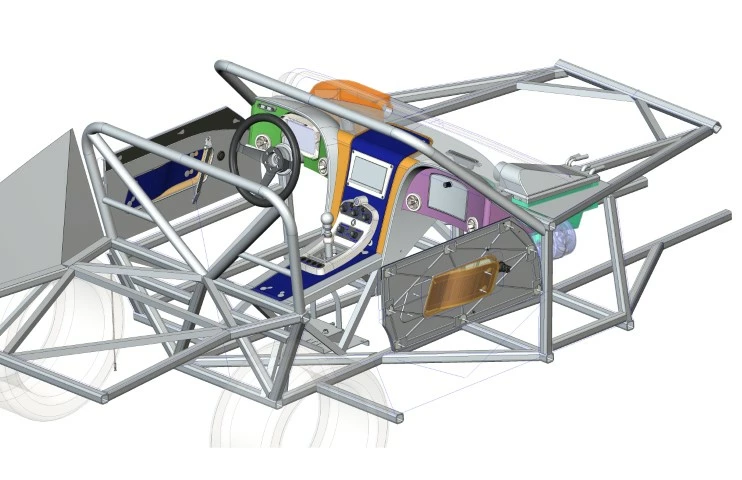

      The tube chassis is from Factory Five, constructed in Creo based on measurements, so we could make the interiors within it.  Parts are largely 3D printed, FDM or the new HP 3D print technology, and upholstered in vinyl.



      I did a bunch of other projects, including HVAC systems and more, but the interiors are among the most complex and the fun ones to look at.

        C
        CLOUSER10-MarbleAuthor
        10-Marble
        January 13, 2020

        stitched leather?  That must have been fun.

        D
        dgschaefer21-Topaz II
        21-Topaz II
        January 14, 2020
        It's actually high end vinyl. The owner does all the upholstery work. The
        curved "brows" were a bit challenging, but the rest was pretty
        straightforward. Well, once we figured out how break up the printed parts
        to allow for simple wrapping and to hide the excess vinyl and the seams. I
        had to make sure to account for the multiple layers of vinyl in the 3D
        printed parts, however.
        E
        eng_sentechas1-Visitor
        1-Visitor
        April 16, 2020

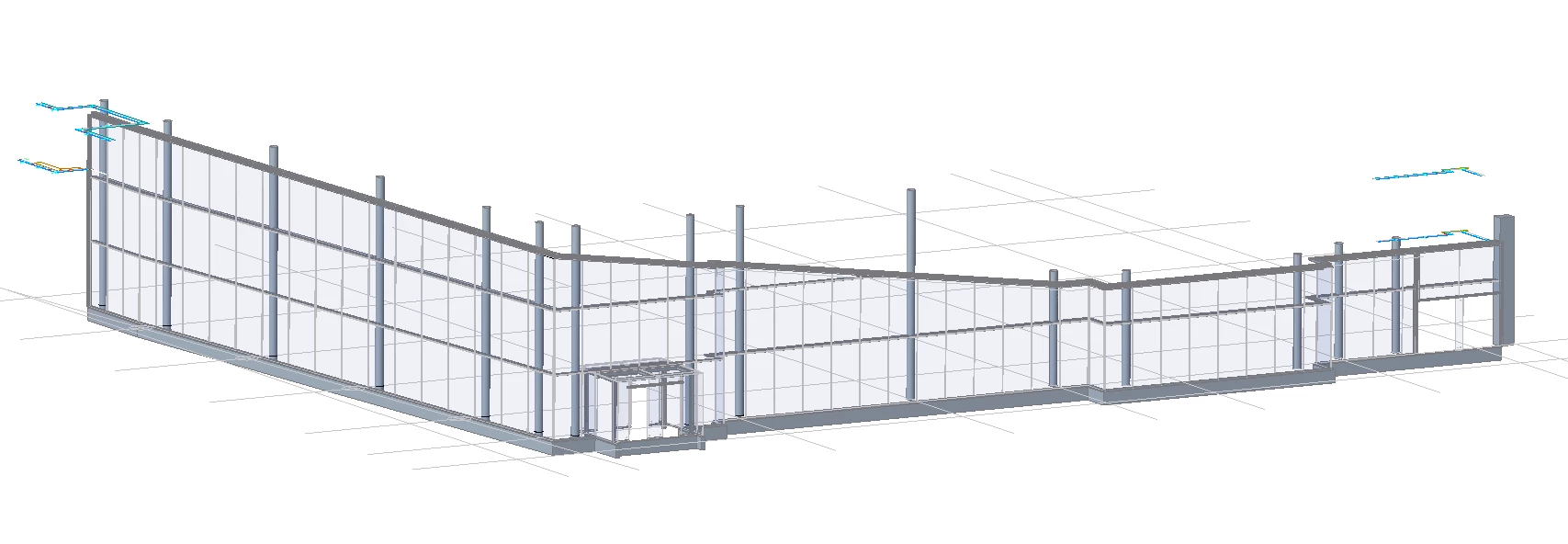

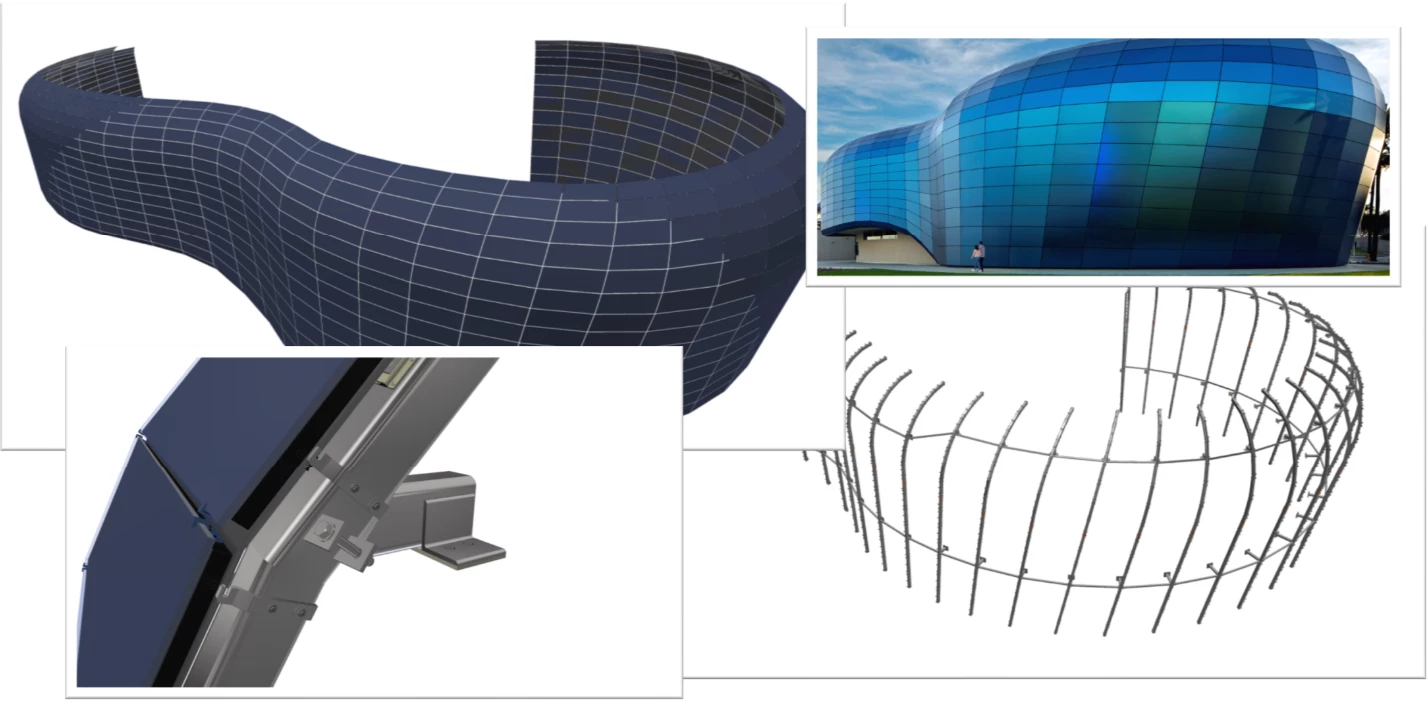

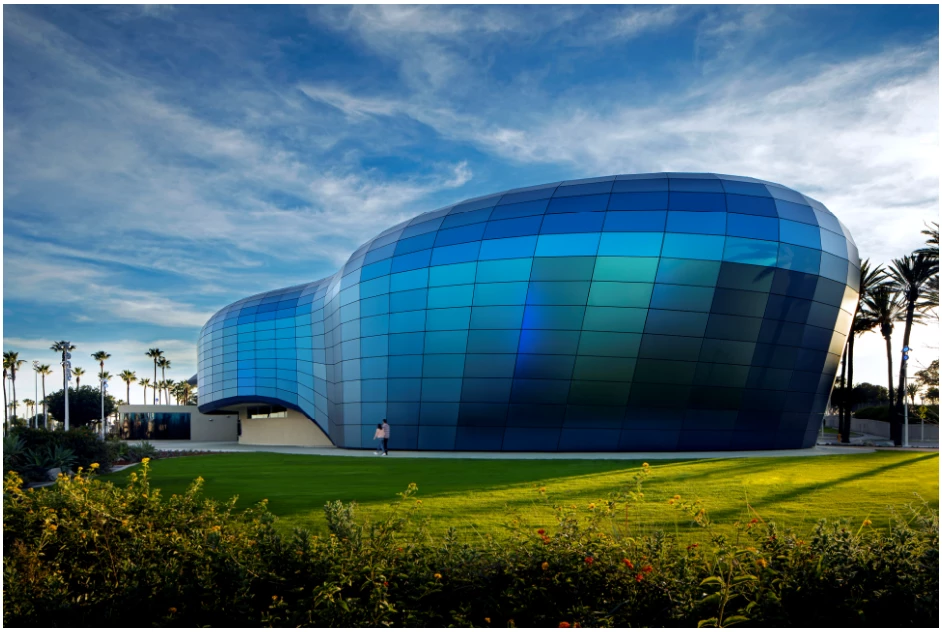

        We use Creo for jumbo structural glass building facade projects and other facade projects. We typically have very simple parts but very large assemblies.



        Capture6 below is a photo of the final project. I didn't have time to open the Creo model.

          S
          23-Emerald III
          StephenW23-Emerald III
          23-Emerald III
          April 16, 2020

          That is some cool stuff there. I don't generally expect to see these types of projects in Creo.
