Slot Constraint Help

  • April 1, 2011
  • 1 reply
  • 4237 views

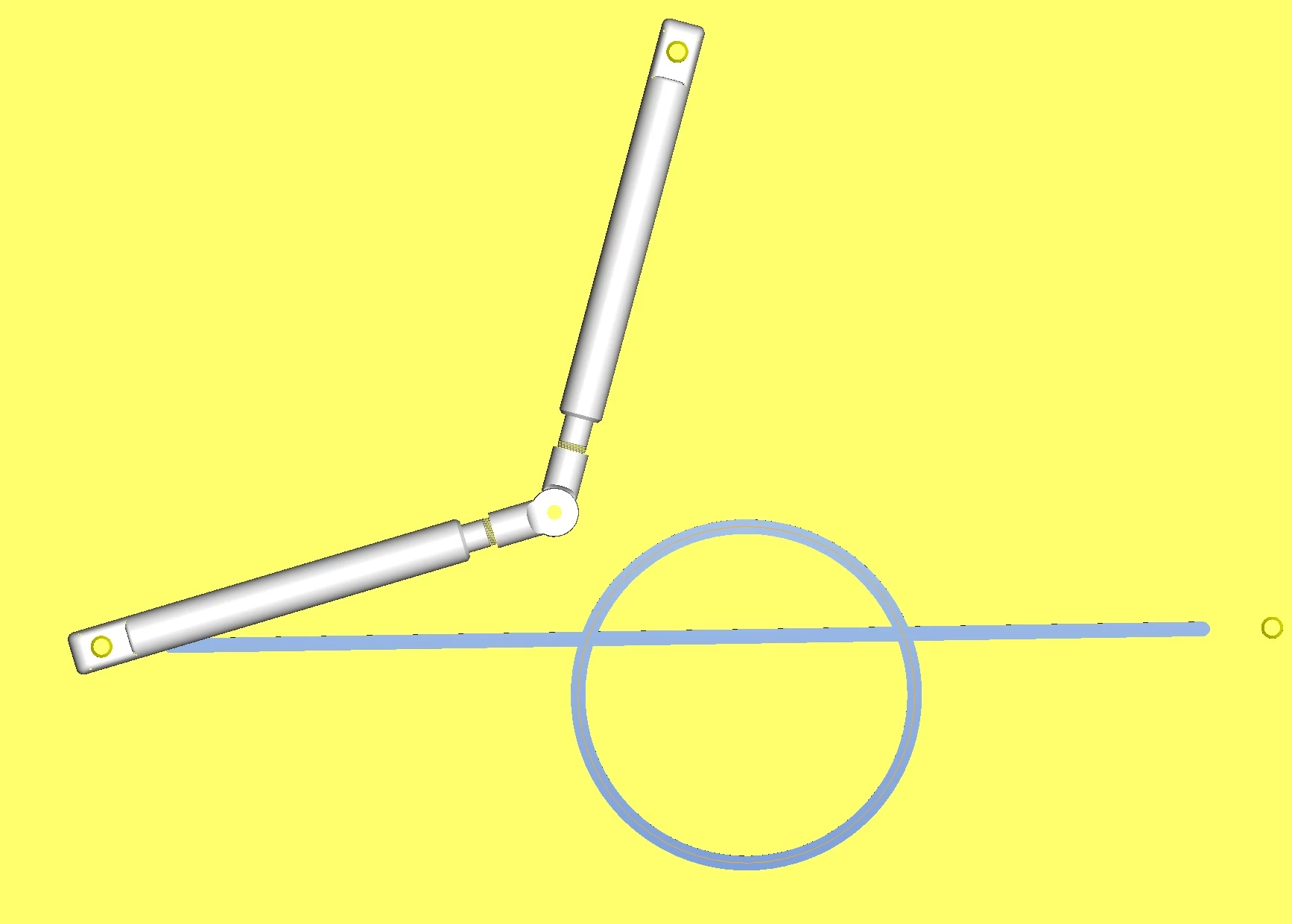

I have two pneumatic cylinders or actuators connected together. I want to constrain them so they move in a circle. I created a sketch for the trajectory or "slot" I wanted them to follow, and I put a point on the part where I want to connect to the slot. Then it asks for the slot axis and I can't figure out what that's asking for. Any help on how to constrain these two actuators to follow the circle shown in the image?

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
tmorishita1-Visitor
1-Visitor
April 26, 2011

Christian,

If your sketched circle is a datum curve, select it for the slot axis. Your point should then follow it. You may need to select both sides of the circle.

Hope this solves your problem.

Tim
