Units in dtl file

Question

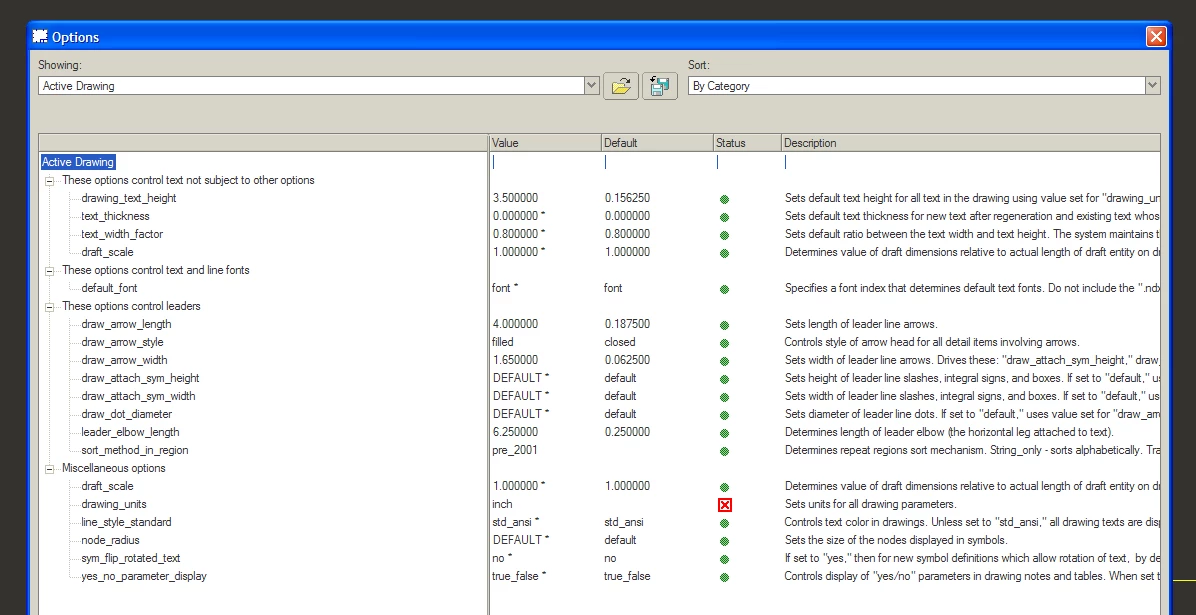

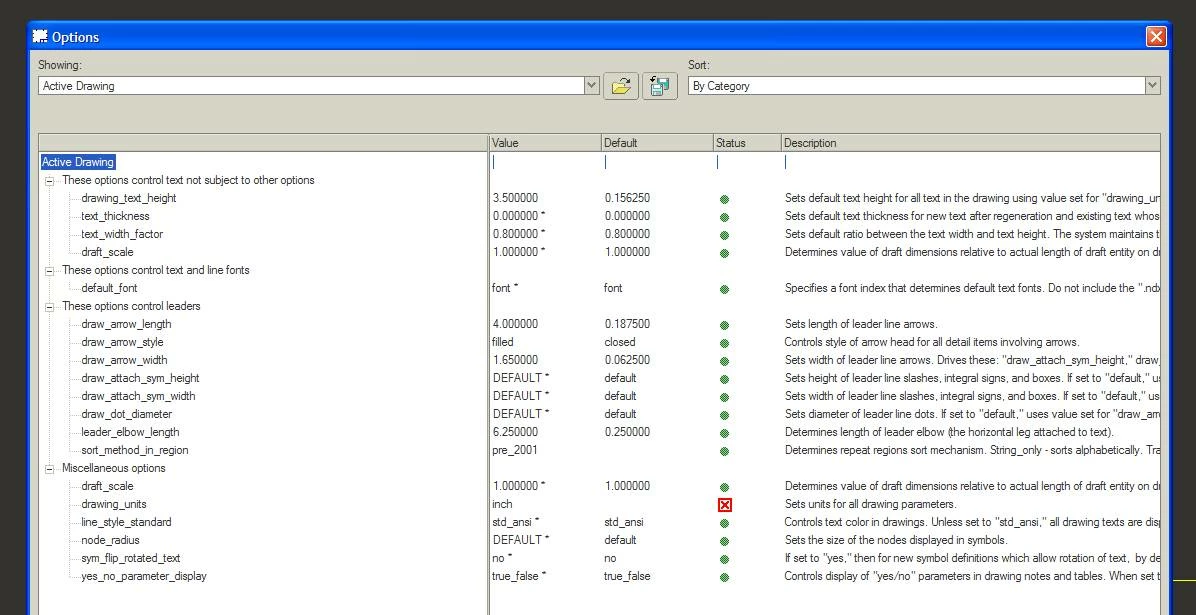

Hi all,Below is the dtl file in one of our formats. The format is metric, yet the drawing units in the dtl file is set to inch. I cannot get rid of it, change it, or override it with another dtl file (I guess that's what a very red X means). Any suggestions? Do I need to create a new format from scratch?Thanks,Stefan[cid:image001.png@01CC948A.54148390]This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

scooke · Answer

Hi Stefan

Yes you need to create a new format from scratch choosing a metric drawing
sheet. Then the units will be locked to mm. Once you choose the units on
creation of the format the units are locked to that format. This does not
mean that you cannot change the units in the drawing in which a format has
been inserted (ie you can have an imperial format in a drawing which is set
to metric) The format is all about what size paper you want to print on and
how you want to measure that.

Regards

Steve
