Components have extra pin

  • April 30, 2024
  • 1 reply
  • 846 views

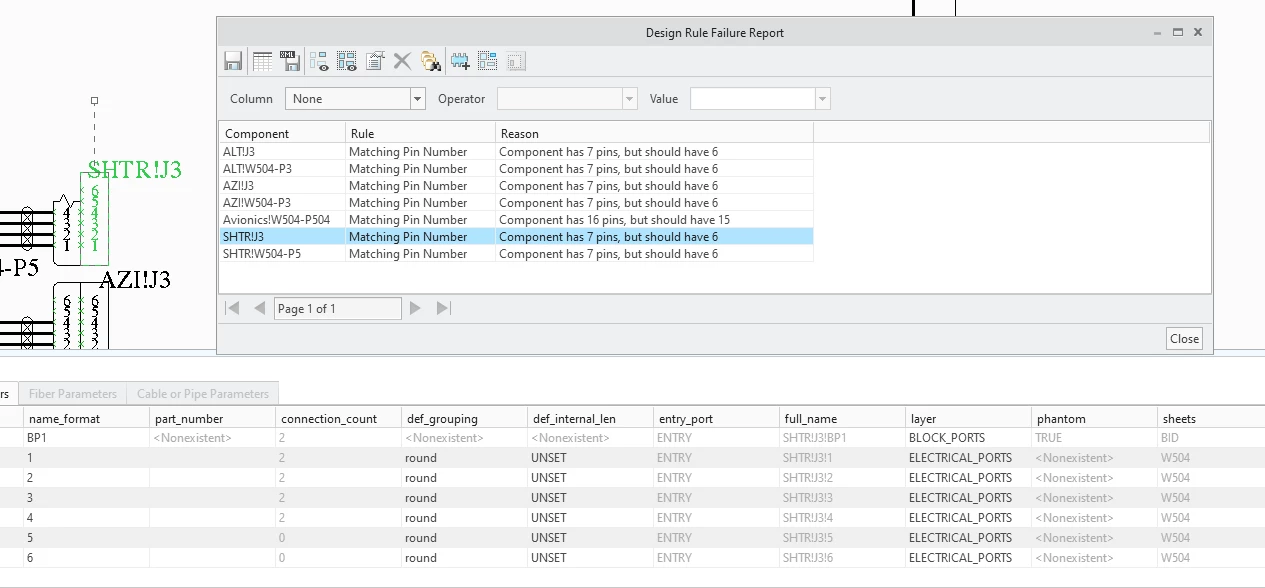

I was using the "Check Pin Numbers" tool while verifying my BID-WID diagrams, and I noticed that every one of my components has one extra pin (according to the tool, anyway).



All of these components are made with a variable group connector and datatables, and each one only shows 6 pins. I've checked their properties, tried selecting children, and using the reorder members tool to make sure none were hidden or disabled.



The only thing I can think of is that Schematics is counting the Block Port as an additional pin on each component. I don't think this will stop me from exporting but it is a bit confusing.



Should I just ignore it, or is there an easy fix?



1 reply

Community Manager
May 6, 2024

Hi DO_9103628,

Thank you for your question. It seems clear, but are there any additional details or context you could add? Additional information may increase your chances to receive meaningful help from other Community members.
