With Creo Illustrate, is it possible to export sections with hatched section faces as a vectorial PDF, including the hatching? In other words, in the exported PDF all lines, including the hatching, should be vector lines, not bitmaps?

10-Marble

Question

Exporting sections with hatched section faces to vector PDF

With Creo Illustrate, is it possible to export sections with hatched section faces as a vectorial PDF, including the hatching?

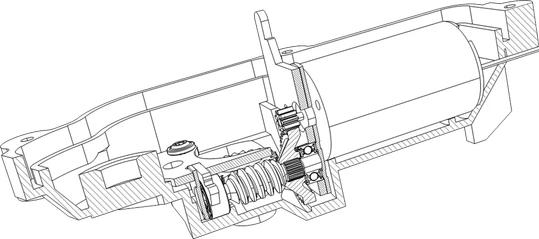

20355, Schnitt mit Schraffuren.png

In other words, in the exported PDF all lines, including the hatching, should be vector lines, not bitmaps?

16-Pearl

Hatching on section cuts is currently not possible in Creo Illustrate.

I would suggest voting on the idea below as we do consider the most popular ideas when considering future enhancements.

Author

10-Marble

Thank you. Does this mean that this is currently only possible with Creo Parametric?
