Use callouts WITHIN insets

Forum|Forum|12 years ago
January 8, 2014
3 replies
4123 views

Hello,

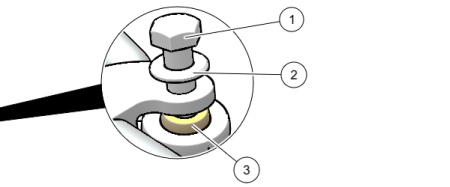

Is it possible to create a callout within an inset? So the leader line should end within the inset area. Now, when I select an object within the inset and attach a callout to it, then the leader line of the inset points to the corresponding object in the main model, but not to the part within the inset. Because the inset is much more detailed it is better visible where the leader line of the callout points to.

We use this functionality a lot within our company, so this question is quite important to us.

Thanks in advance for your answer!

Creo View

M

mbalko

1-Visitor

Hello, sorry for not understanding your question. But what do you mean with "inset"?

C

ChristopheDoz

1-Visitor

Hello,

I don't understand the use case. What is the goal to create a callout inside inset?

Regards

Christophe

T

TommyRasmussen

11-Garnet

Hi,

The idea is that I create a relatively small "overview" image of my design model.

I create relatively large Inset views that points to the overview image - in that way I can document where the detail is located.

In t the detailed Inset view I would like to be able to add annotations and callouts because this is where I actually can see the detailed design.

Regards,

Tommy

T

TimHarrison

1-Visitor

Hi,

Thanks for all the input. This is a known requirement and we are actively working to address this. It is planned that Creo Illustrate 3.0 M020 should have the ability to show callouts on Inset views
