How can selected datum point names be shown in a drawing, Creo 8, Parametrics

Pius
13-Aquamarine

How can selected datum point names be shown in a drawing, Creo 8, Parametrics

Hi all

Is there a way to show the names of user selected datum points in drawing views?

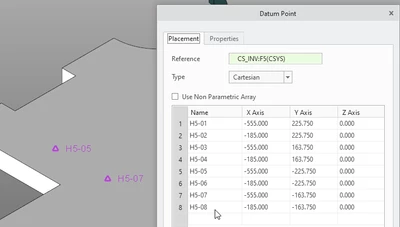

Point Names coming from point cloud as these:

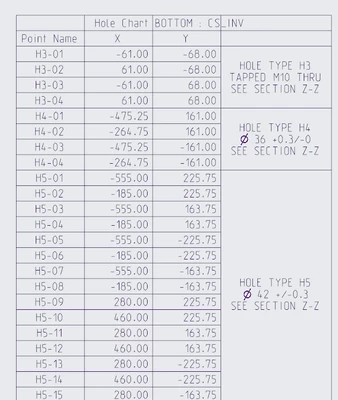

Can be listed in hole table like this:

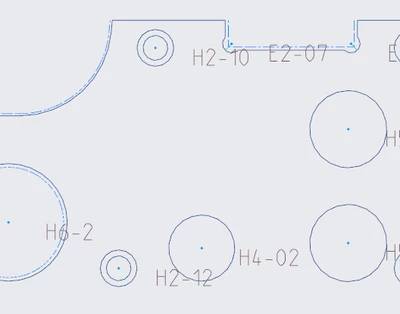

but should as well showing up on a drawing view unlike this, because here I cannot specify the location by my self and I can not deselect unused points.


and I do not like to activate the option, becaus this is a user setting and the names need to be on the drawing all the times.




Does any body know a way to do it in a way that the names in the point cloud is linked to the name on the drawing view?

Many thanks in advance for your inputs.
Pius

Creo Parametrics 8.0 User since 2023
more than 20 years with other CAD tools
1 REPLY 1
pausob
18-Opal
(To:Pius)

Note that these tags can be collected on a layer:


Then the visibility of that layer can be controlled on the drawing views, etc.

However, I don't know of a way to define position of these tags on the drawing...
