what is difference between View scale and drawing sheet scale?

  • May 9, 2023
  • 2 replies
  • 2240 views

Hi,

I am a newbie to Creo and I recently created a small format to test it out the scale properties of a drawing.

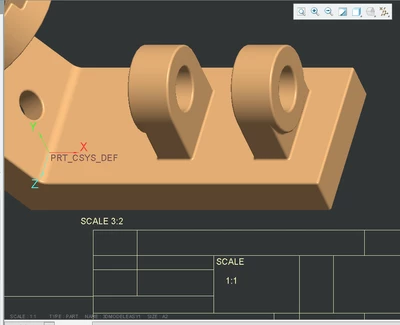

here I found 2 scale one is drawing sheet scale(!) and view scale? how to call the view scale function in the title block from a format? For this I used &scale.





Best answer by StephenW

As far as I know, you can't display a view scale (custom scale) anywhere except in the note that is auto-generated under the view.

I would suggest setting your sheet scale to be the scale of the major view on the sheet and use a custom view scale for any view that isn't that scale.





2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
May 9, 2023

The &scale is the sheet scale.  A view's scale can be adjusted in the view properties to have its own scale and that should generate a label under the view to denote that scale.






S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
May 9, 2023

If you want them to match, remove the custom scale from the view and change the sheet scale to the desired scale.

R
RG_1067149912-AmethystAuthor
12-Amethyst
May 9, 2023

Thanks. That helps.

But is there any way to display the custom scale? Do I need to change sheet scale every drawing to display the custom scale even though I have a format?

S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
May 9, 2023

As far as I know, you can't display a view scale (custom scale) anywhere except in the note that is auto-generated under the view.

I would suggest setting your sheet scale to be the scale of the major view on the sheet and use a custom view scale for any view that isn't that scale.
