Angular Dimensioning

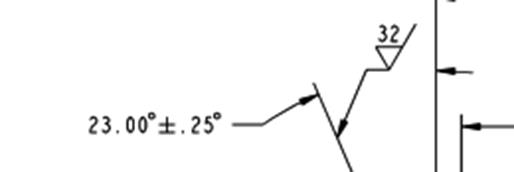

Does anybody know how to get an angular dim as shown in the image? (in Creo Parametric 2.0), Ang_dim.jpg

Labels:
0 Kudos
Notify Moderator
ACCEPTED SOLUTION

Accepted Solutions
TomD.inPDX
17-Peridot
17-Peridot
(To:ptc-4951054)
‎Mar 20, 2014 01:22 AM
‎Mar 20, 2014 01:22 AM

Highlight the dimension, then hold shift while dragging the text horizontal.

View solution in original post

Notify Moderator
3 REPLIES 3
TomD.inPDX
17-Peridot
17-Peridot
(To:ptc-4951054)
‎Mar 20, 2014 01:22 AM
‎Mar 20, 2014 01:22 AM

Highlight the dimension, then hold shift while dragging the text horizontal.

Notify Moderator
ptc-4951054
1-Visitor
1-Visitor
(To:ptc-4951054)
‎Mar 20, 2014 12:35 PM
‎Mar 20, 2014 12:35 PM

It works, many thanks sir.

0 Kudos
Notify Moderator
TomD.inPDX
17-Peridot
17-Peridot
(To:ptc-4951054)
‎Mar 20, 2014 12:58 PM
‎Mar 20, 2014 12:58 PM

You are welcome. And welcome to the forum!

0 Kudos
Notify Moderator
