Creo Elements Direct Modeling 19.0: How can I measure distance between the axes of two holes

LiH
2-Explorer
2-Explorer

Creo Elements Direct Modeling 19.0: How can I measure distance between the axes of two holes

Hello friends,



In Creo Elements Direct Modeling 19.0, how can I measure distance between the axes of two holes?

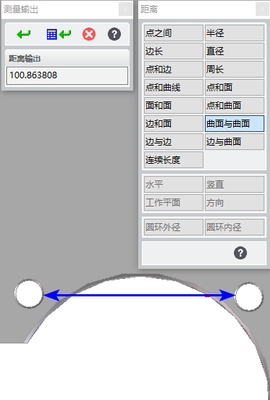

Every time when I want to measure the distance between axes of two holes, I only can get the minimum distance between two holes.




ACCEPTED SOLUTION

Accepted Solutions
highway45
13-Aquamarine
(To:Kotom-Eng)

And you have to take the function "point to point".

Not "surface to surface".







---------------------
SolidDesigner-20.5 + PE8 + PhoenixPDM + Solidworks + Blender

View solution in original post

4 REPLIES 4
Kotom-Eng
16-Pearl
(To:LiH)

Before clicking the circles, hit [CTRL][SHIFT]. That will select the center of the circles.

http://kotom.eng.free.fr
highway45
13-Aquamarine
(To:Kotom-Eng)

And you have to take the function "point to point".

Not "surface to surface".







---------------------
SolidDesigner-20.5 + PE8 + PhoenixPDM + Solidworks + Blender
LiH
2-Explorer
2-Explorer
(To:highway45)

Hello highway45,



Thank you, this issue had troubled me for a long time, and you have successfully helped me solve it, many many thanks.🤝

LiH
2-Explorer
2-Explorer
(To:Kotom-Eng)

Hello Kotom-Eng,



Many many thanks for your warm-hearted help.🤝
