Vertical dimensions in ASME Y14.5M std

  • January 12, 2015
  • 1 reply
  • 1051 views

In accordance with ASME Y14.5M standard

the "dimensions should be placed on drawing

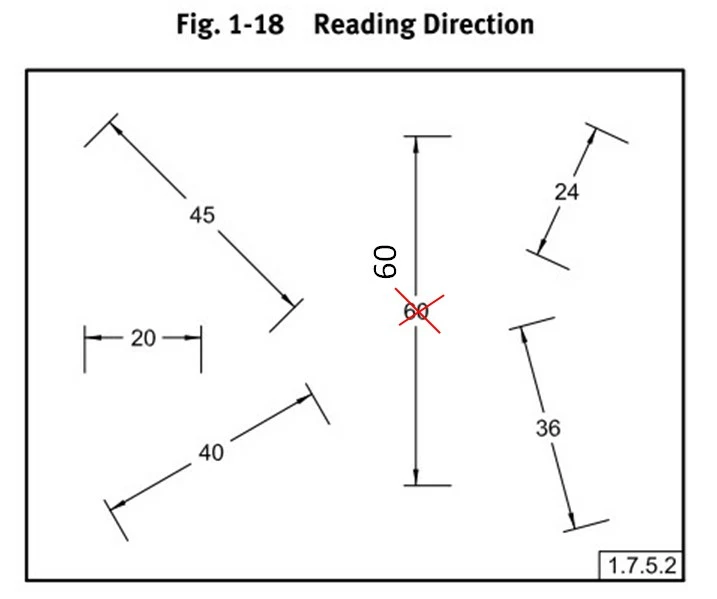

to read from the bottom of drawing" ( section 1.7.5.2 ).

That means a vertical dimension is written in horizontal way .

But the standard uses "should" and not "shall" verb.

So , in you experience,

is it accetable that a vertical dimension is written in vertical way, parallel to dimension line ,

to be read from right ?

Thank you

Pier


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
January 13, 2015

I loved the days when there was only one "right way" to do drawings. Today it has become a free-for-all.

I only change the orientation of dimensions if it is purely an ISO compliant drawing. Most of my clients are in the USA where ASME Y14.5 is the preferred standard.
