Question

difficult geometry, dome bottle

  • August 4, 2012
  • 3 replies
  • 2366 views

hello Proe pros,

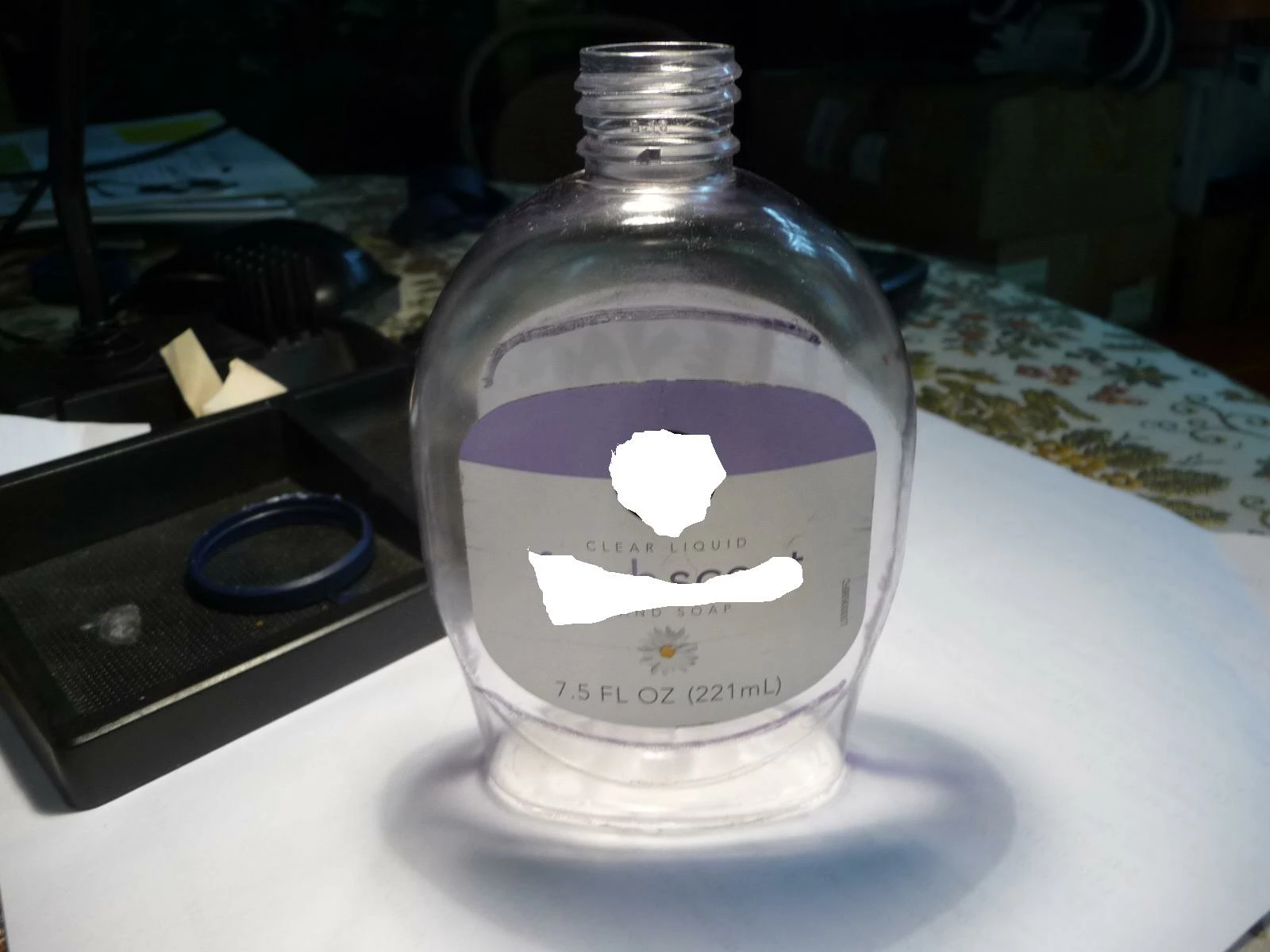

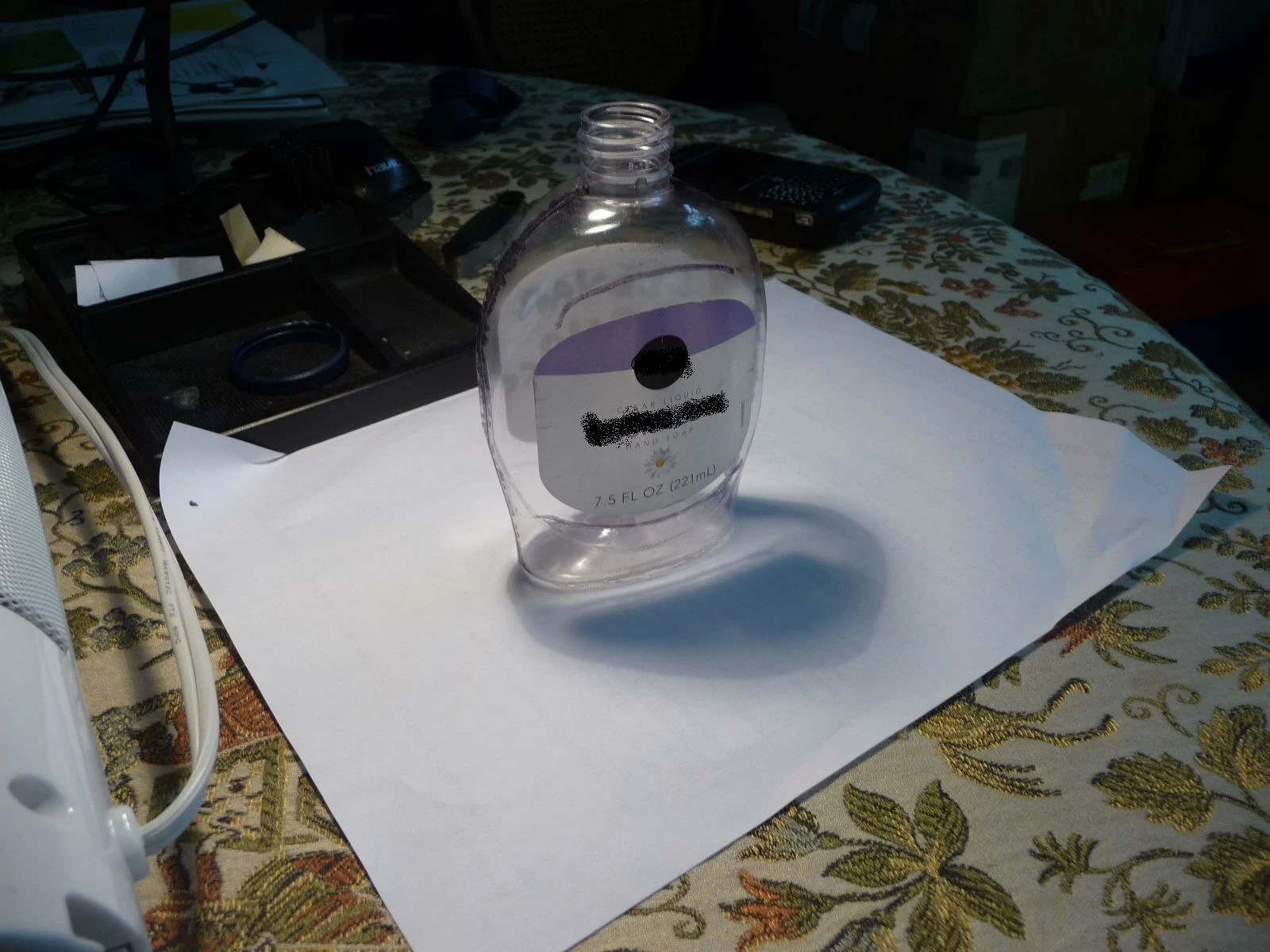

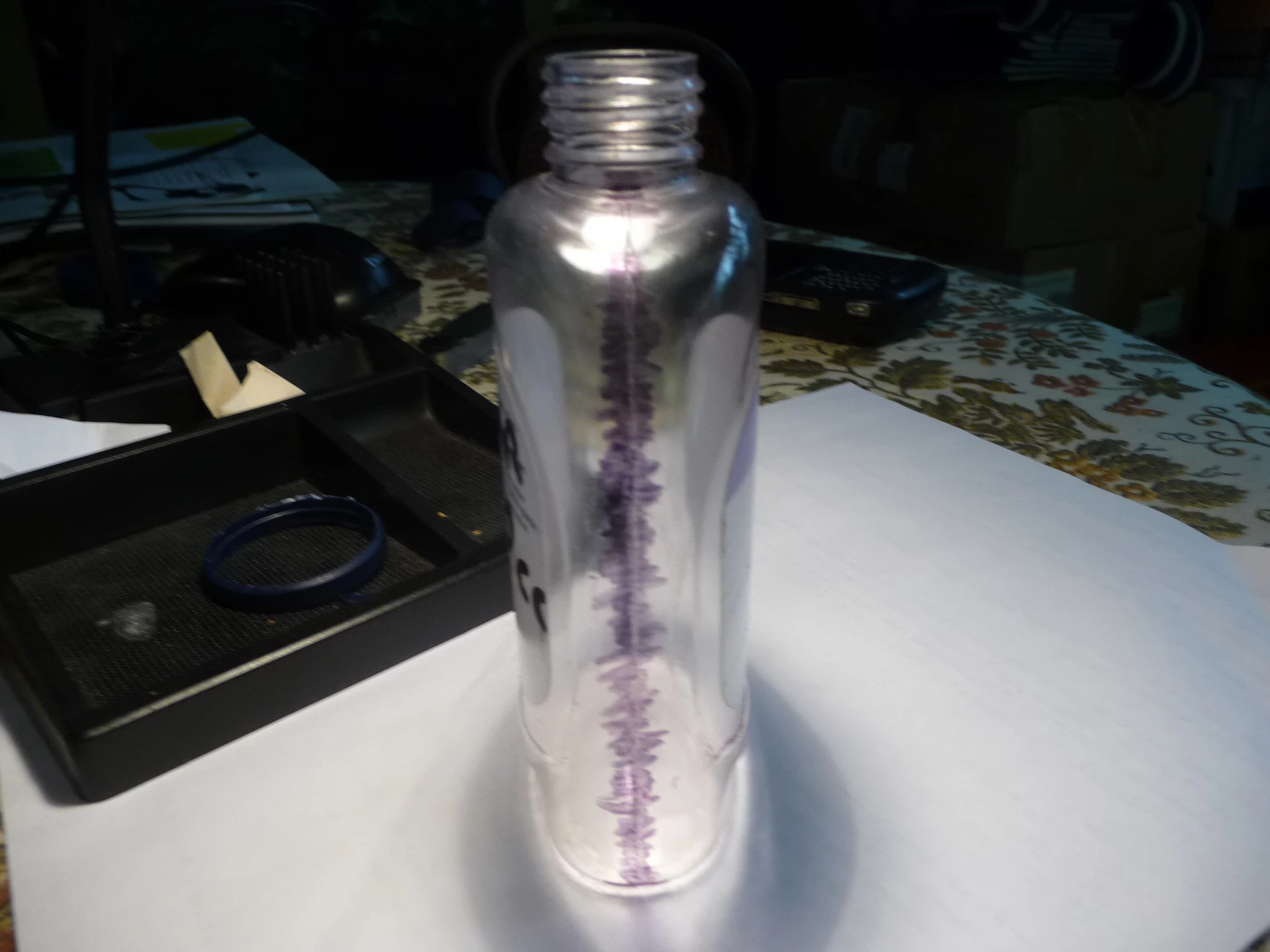

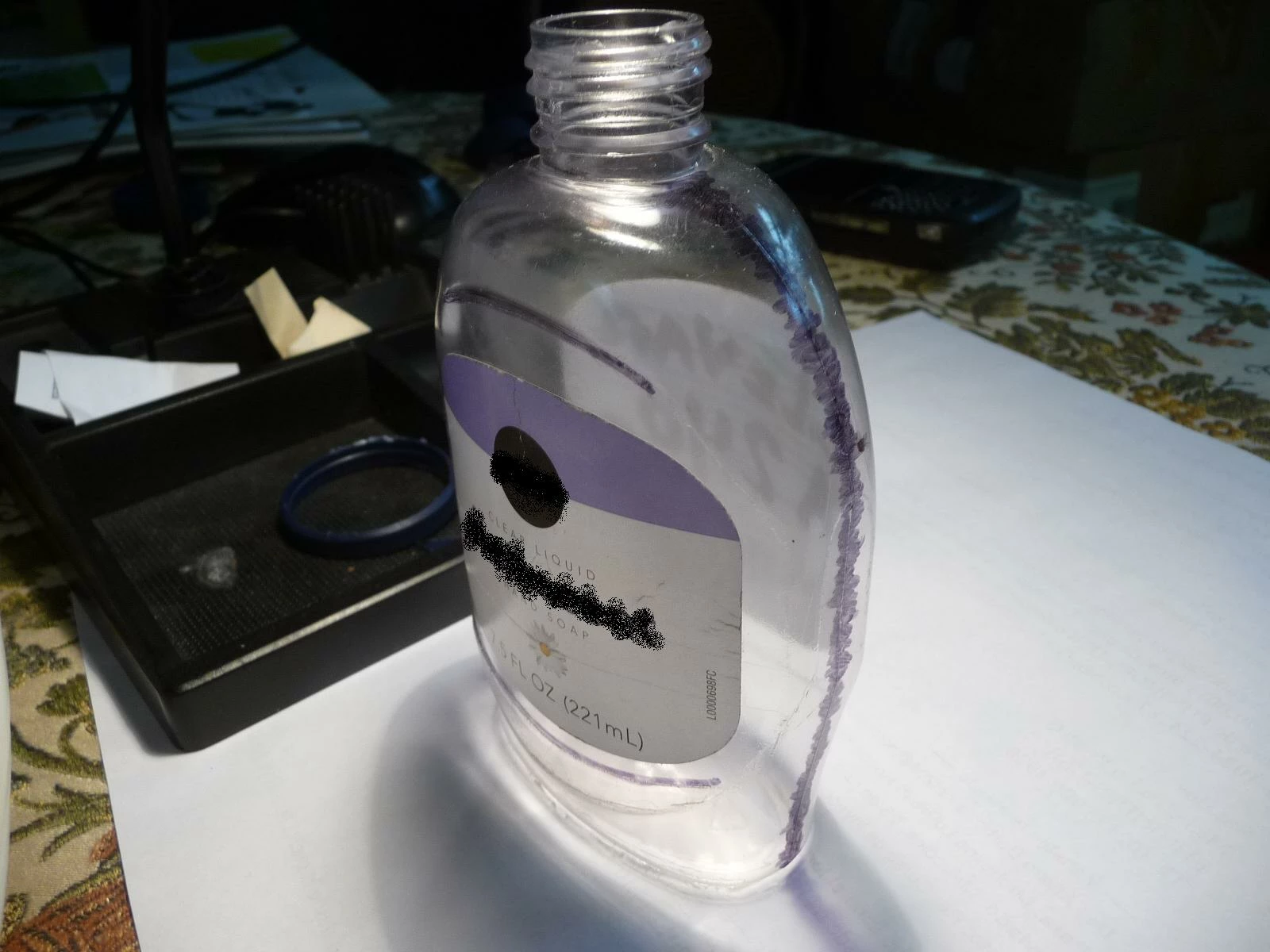

I have attached images of a bottle I was asked to model. So far this has been beyond my knowledge/skills.



Does anyone have suggestions on how to tackle modeling this bottle? A particularly difficult zone is the dome on the top.







best regards, al



using wf 3.0


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

T
TomD.inPDX17-Peridot
17-Peridot
August 11, 2012

Depending on the level of accuracy required, I would suggest a series of sweeps, blends or sweep/blends. Build half the bottle and mirror the base model and add the cap threads.


I might even consider an outside "scanning" service to bring the shape into Creo and then work with this "known geometry".

D
DeanLong1-Visitor
1-Visitor
August 17, 2012

That is a simple Pro/Surface project. Nothing complex, Pro/E-wise,is needed to create that bottle.


Simple splines along the X, Y and Z axes, with Boundary surfaceswill get it done.

D
DamianCastillo1-Visitor
1-Visitor
August 17, 2012

Alvaro,


I created a video on my Youtube channel "Creo Junkies" to show you how to create the bottle.


Hope this helps.


http://www.youtube.com/watch?v=zoMW_usjaJo&feature=plcp&hd=1


"Too many people walk around like Clark Kent, because they don't realize they can Fly like Superman"
