Find the Offender (WF4)

  • January 3, 2014
  • 2 replies
  • 1154 views

I have a medium-sized assmbly (about 80 different components) and I am trying to find its mass and CG. I assigned all the materials but I must have made a mistake in one or more parts because it's wildly overweight. I can figure out how to generate a list of the parts showing their mass individually - I'm sure whatever is wrong would jump right off the screen at that point.


I also tried adding a column to the repeat region on the assembly drawing that would show the mass, but the closest parameter I can find just shows the density and it's not really helpful. I'm sure I've assigned an in-lbm value to a kg-mm-sec part somewhere though.


Any thoughts?



TIA


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

T
TomU23-Emerald IV
23-Emerald IV
January 3, 2014

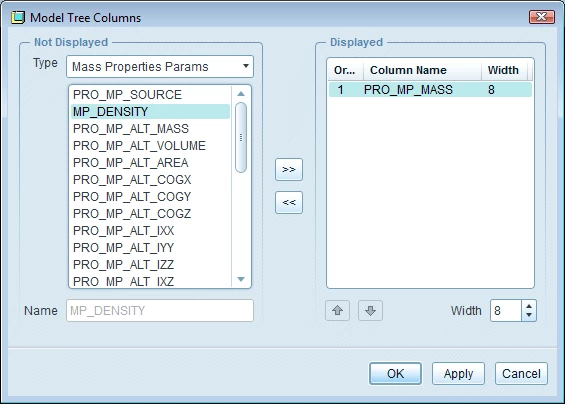

Add the PRO_MP_MASS parameter to either the BOM or the assembly model tree. The "heavy" component should quickly show up.

[cid:image001.png@01CF0895.B3F37560]
StephenW
StephenW23-Emerald III
23-Emerald III
January 3, 2014

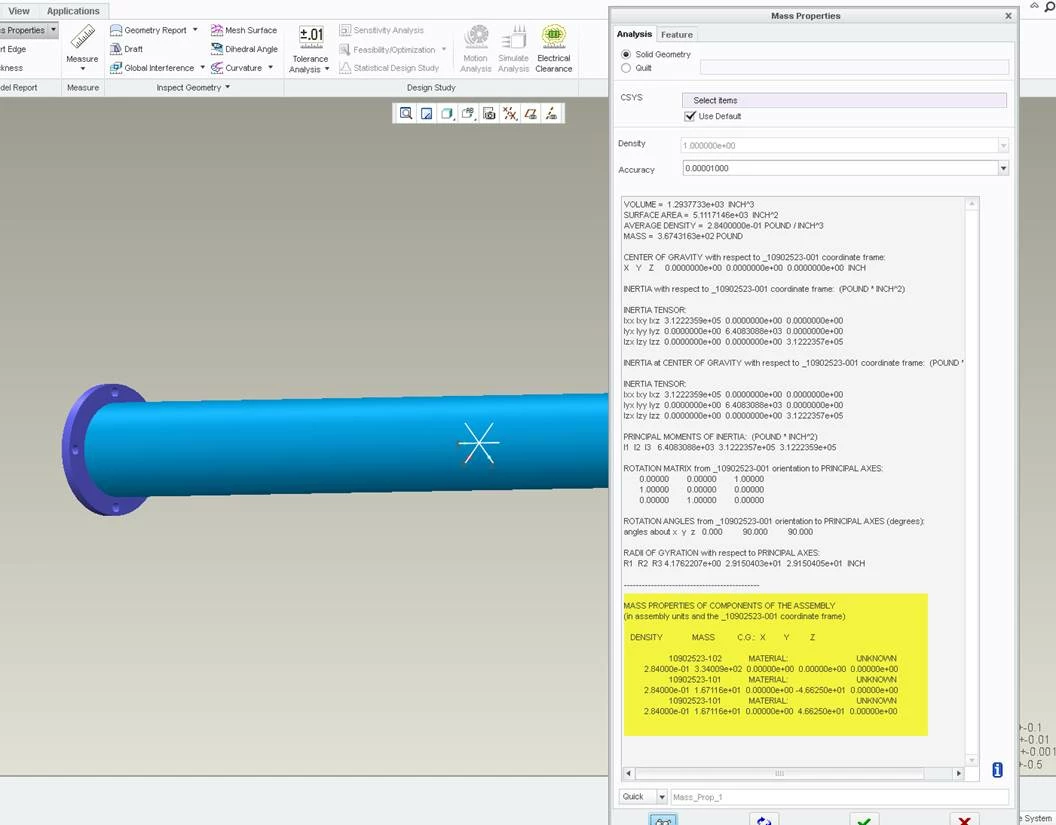

OR simply look at the bottom of the Mass Properties box.

It gives you filename, density, mass, CG (X,Y,Z). If you have sub-assemblies, it only shows the mass and density of the sub-assy, that's when the model tree columns come in really handy.

[cid:image001.jpg@01CF0895.914A7900]
