Question

Material orientation setup

  • March 2, 2016
  • 1 reply
  • 1884 views

I am trying to figure out how to use the material orientation menu on creo parametric 2.0. I created a new orientation and selected my coord. system but I don't understand what the 1, 2, 3, X, Y, Z and "rotate about" are for. I would like my material to be oriented along the X axis. can someone help me set this up?

Thanks

Randy


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

E
ehaenen1-Visitor
1-Visitor
March 3, 2016

Hi Randy

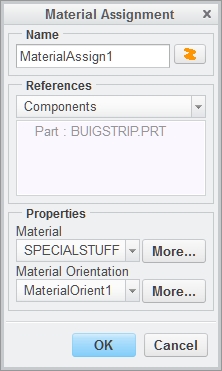

This contraption is just meant for people that accidentally define their material coordinate system in the wrong direction.

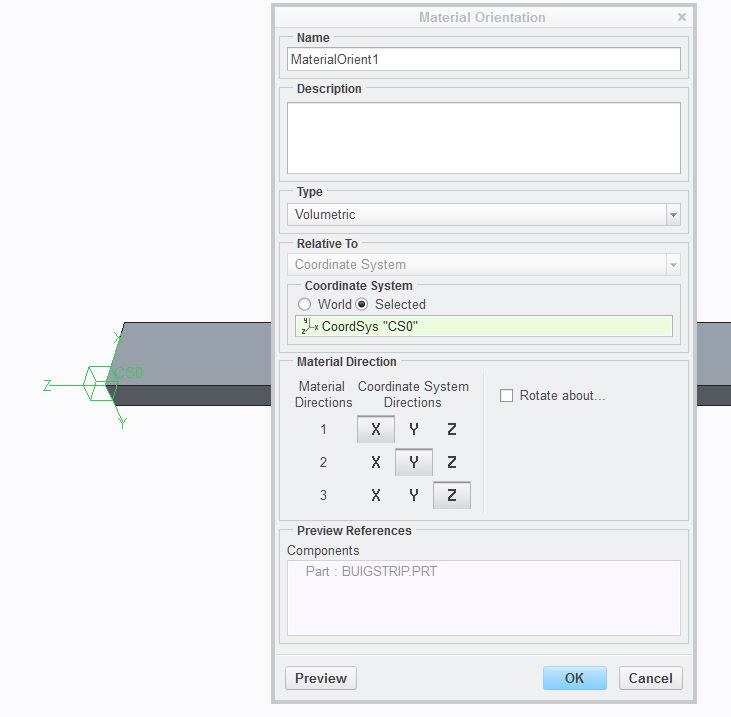

If you want your material to be oriented along the x-direction, the "1"direction must be the local x-direction as in this picture. If you happen to want the 1-direction to coincide with the local z, feel free to change the selection.


Hope this helps

Erik

R
rperez-51-VisitorAuthor
1-Visitor
March 7, 2016

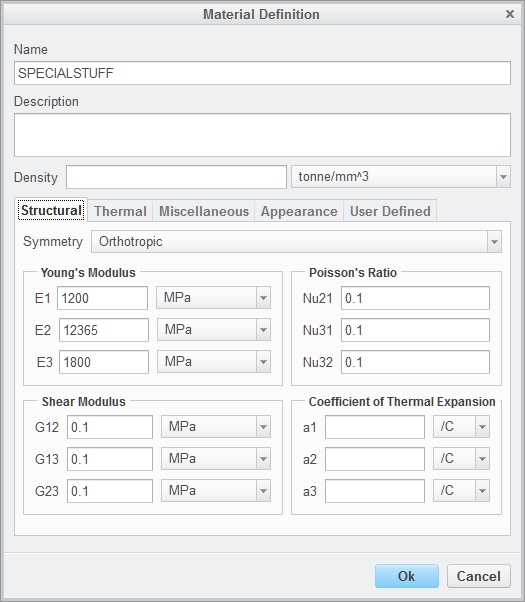

Thanks Erik. I have the material orientation correct but I got a message saying orientation is ignored for isotropic material. Would using the same young's modulus for E1, E2, and E3 give me accurate results? I only have a modulus of 10400 ksi for my material.

Randy

E
ehaenen1-Visitor
1-Visitor
March 7, 2016

Hi Randy

If you do that, you don't have to do that. To be more clear, if it is correct that E1=E2=E3, than the orientation doesn't matter and you can use isotropic material anbd you don't need a material coordinate system. In  stead, you can use that coordinate system to show stresses (σxx , σyy, σzz   ) where x and y and z are according to that coordinate system.

Erik
