Missing planes in model tree

  • March 17, 2014
  • 3 replies
  • 5066 views

Hello everyone,

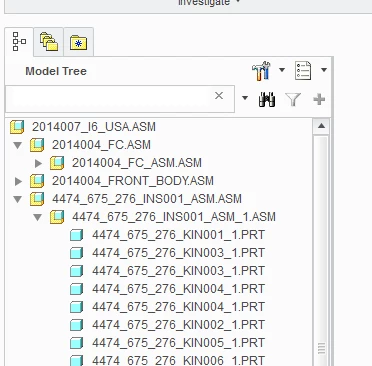

When I closed my computer on friday everything was still ok, but when starting Creo this morning my planes are missing from the model tree.

But when I create a new part the planes are visible in the model tree.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

Dale_Rosema
Dale_Rosema23-Emerald III
23-Emerald III
March 17, 2014

Do you have a filter setting that is turning them off?

M
MartinHanak24-Ruby III
24-Ruby III
March 18, 2014

Berry,

you have to save Model Tree configuration into a file and set MDL_TREE_CFG_FILE in config.pro to point to this file.

Martin Hanak

    T
    TomD.inPDX17-Peridot
    17-Peridot
    March 18, 2014

    PLanes are features and assembly tree by default does not show features. Part files do show features.

    You can turn features on in assemblies by clicking on the hammer tool at the top of the tree and selecting the top option.
