Radial Axis centerline.

  • January 19, 2010
  • 1 reply
  • 896 views

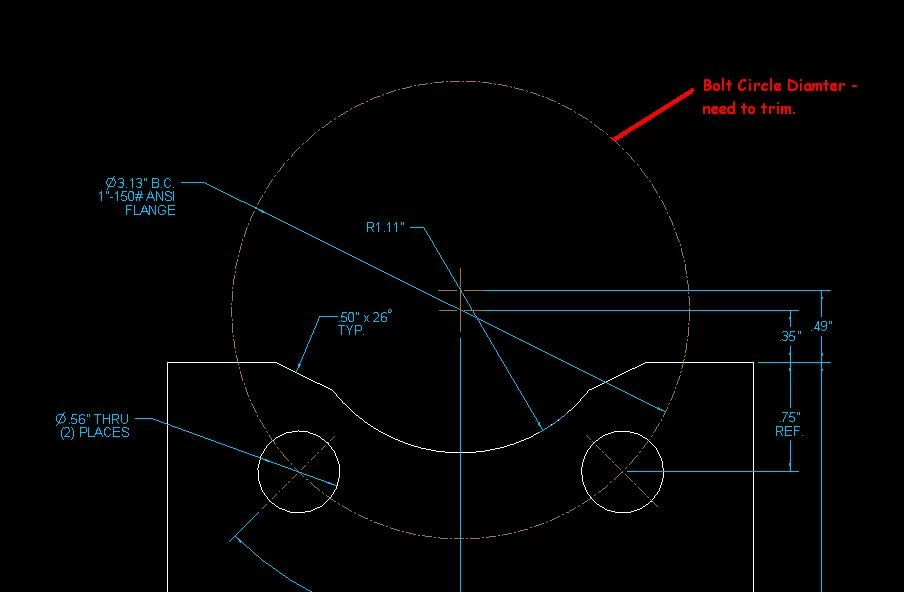

Is it possible to trim a radial axis pattern centerline ina drawing? ie: A bolt hole pattern centerline? See attached.
<u>

</u>
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

I
ikamster1-Visitor
1-Visitor
January 20, 2010
First, you need to divide the circle into two arcs, then you can trim each arc .
