Question

Roll forming

  • March 14, 2016
  • 2 replies
  • 3347 views

Hello everyone, I wonder to know, there is the part in creo parametric for design roll forming process?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

M
MauroStefanovic1-Visitor
1-Visitor
March 14, 2016

No way with Creo.

Software that can do are:

FORGE® NxT - Overview - Transvalor

http://www.deform.com/

This CAE softwares are anyway so so so expensive! Only manifacturers of formed products can buy it.

ANSYS can't do what these sofware can do. That kind of simulation is more complex of fluid-dynamics simulations.

T
TomD.inPDX17-Peridot
17-Peridot
March 15, 2016

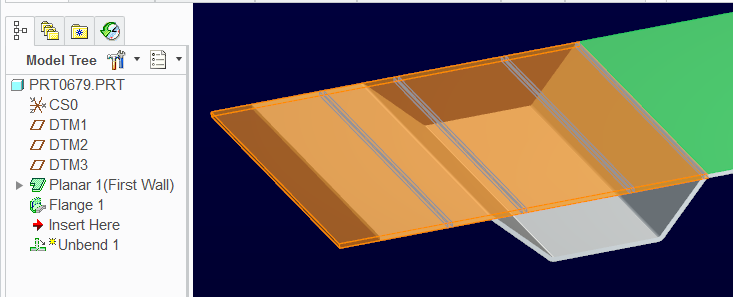

It is a simulation, of course, but you can make flanges based on sketch forms in sheetmetal.

D
dschenken1-Visitor
1-Visitor
March 15, 2016

Roll forming is a multi-stage process that often requires non-intuitive steps, like taking a flat, bending it into an arc, and then rolling it flat again so that other features can be formed in the intermediate condition. There is specialized software that includes the intermediate strains to ensure the finished segment will come out OK. Because parts undergo plastic deformation which leads to variable material properties (via work hardening), and there is contact between the rolls and the metal, it requires more than the average linear, small deformation analysis.

Roll Forming: data M

or

UBECO PROFIL - Rollform Design Software
