Question

SCELETON FROM IMPORTED FILE - RESETTING THE ORIGIN

  • February 28, 2013
  • 4 replies
  • 3726 views

Dear all,

I'm busy with a scructure where I use a sceleton that comes from an 'imported wireframe/surface designfile.

I have cleaned up the designfile first, removing all I din't need but putting it on top of my assembly it results that the section of the designfile I use as sceleton is far away from the default coordinate system...

Sceleton parts seem to assemble automatically 'default'? So I can not move it in my assembly...

Replacing the base planes and coordinate system doesnt help, putting it default it is put on the 'old' coordinates...

Working in Creo 2 (not so familiar, came from wildfire 4 or 5) I tried to copy the imported feature and pase special to apply a move to it, but I cant copy...

So in short, how to put the default coordinate and a the coordinate of an 'imported' skeleton part together...

Thanks!

Didriek


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

C
Constantin15-Moonstone
15-Moonstone
February 28, 2013

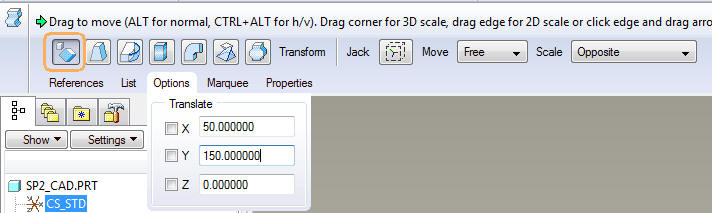

You can use the 'Warp' feature with the 'Transform' option in order to move the geometry relative to the coordinate system.
So effectively you do not move the coordinate system but the result will be the same.


T
TomD.inPDX17-Peridot
17-Peridot
February 28, 2013

It seems that the skeleton file has a random "center". When you assemble it, does it drop in and constrain as "default"? Seems you would want to fix this in the skeleton file so the assembly "default" will be where you want it.

D
dgschaefer21-Topaz II
21-Topaz II
March 1, 2013

Yes, a skeleton is assembled in the Proe / Creo 'default' position where the 3 default planse or default CS are lined up. This si the way it is intended to work, your skeleton's origin and your assembly origin are intended to be the same. In fact, you cannot create a skeleton file outside the contect of the assy, so in a way it's 'orignis' if you will are tied to the assy 'origin'.

I dont' see this as a problem, but you can deal with this simply by buildiung yout skeleton geomtry around the default CS as you desire it to be when assembled in your assy.

D
dgschaefer21-Topaz II
21-Topaz II
March 1, 2013

The way I'd solve this is by aligning specific coordinate systems in your original import. This may take some trial and error and it's best if you have access to the original file and the program which it was created in.

If you can edit the original file in its native program, do so and add a coordinate system where you want the Proe / Creo default CS to be. Then, when importing the file in Proe / Creo choose that CS in the import and the default CS in your skeleton.

Alternatively you need to do the reverse. Determine the offset of the imported data and the Proe/ / Creo CS. Create a new CS in your skeleton offset in the opposite direction. In other words, if your data is offset 1,2,3, you need a CS at -1,-2,-3. Then re-import your data and choose the imported files default CS and this newly created CS in Proe / Creo. That should put your geometry where you want it.

D
didriek1-VisitorAuthor
1-Visitor
March 6, 2013

Just found a sollution by accident....

The first skeleton you assemble is 'by default', so when your default is not where you want in de imorted geometry you have an issue (this topic)

BUT, the second skeleton you assemble, Creo asks you constrains!

>> what I did is create an new, empty skeleton part A... set as first skeleton (default)

After, I put my 'imorted' skeletons in, by mate/align.... then I fixed them in that position so I can delete the skeleton A

= result, a nice assy whith the imported skeletons where I want them!

T
TomD.inPDX17-Peridot
17-Peridot
March 6, 2013

If it is a simple case of constrains, you should be able to delete the default constraint and then apply a different constraint to the 1st part. My assemblies don't do this any more but I remember when this was the default behavior.

D
didriek1-VisitorAuthor
1-Visitor
March 5, 2013

I have put the inmported file in an assy and made my own file on the imorted geometry...

That way I was able to put the origin in the origin and I have a 100% editable skeletonfile, much better than using imorted geometry.

Thanks for the insights!
