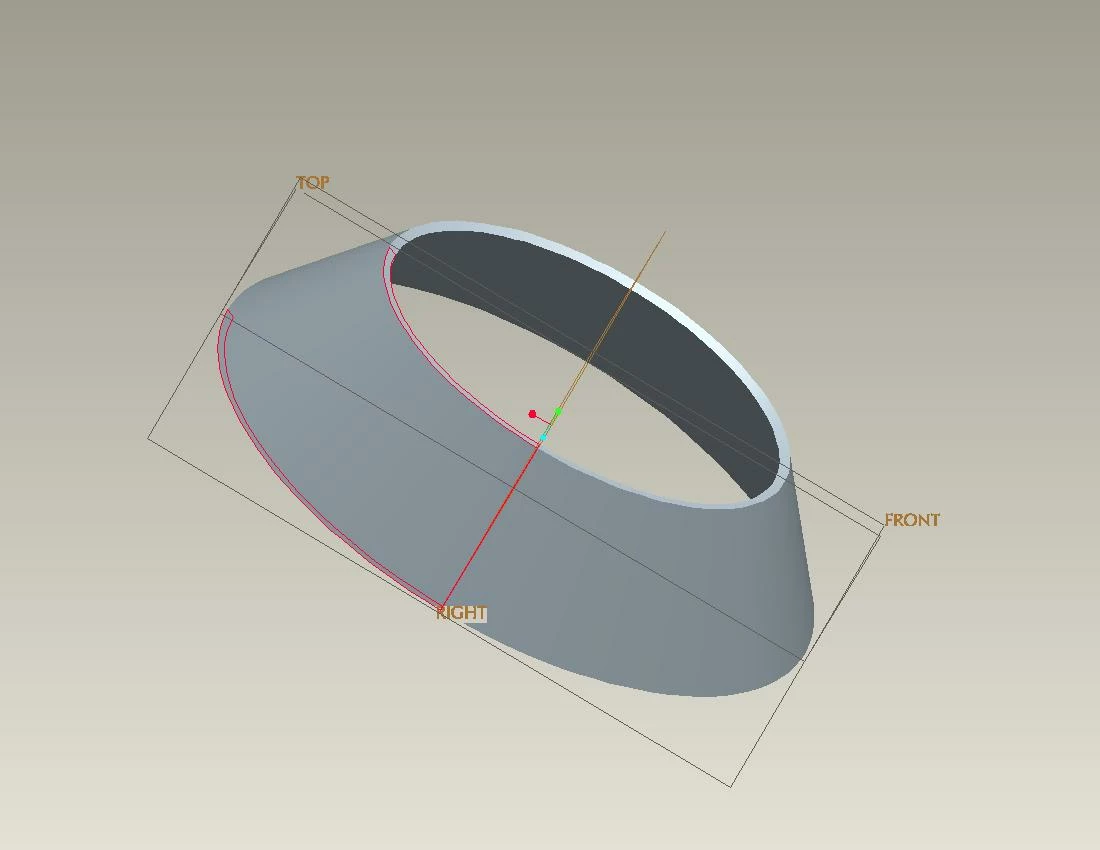

Hi all This is the geometry Which I want to unbend help me.
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

A
Anonymous
February 8, 2010
hi, Please revlove the section to angle of 90 Deg. Create a flange on the inclined edge of the revlove. Use unbend and select the flat surface on the flange as fixed and unbend. This will solve your problem. Regards Vishal
R
rtoonders1-Visitor
1-Visitor
February 9, 2010
Make it a sheet metal model by: applications - sheetmetal And convert with "driving sft" (the outer surface for example) The create a rip insert - shape - rip - regular rip note: If the default datums are in the center of the cone, use these to place the rip To unbend assign the edge of the rip as the fixed geometry Now you should have a flat
G
GrahameWard1-Visitor
1-Visitor
February 10, 2010

"Roeland Toonders" wrote:

Make it a sheet metal model by: applications - sheetmetal And convert with "driving sft" (the outer surface for example) The create a rip insert - shape - rip - regular rip note: If the default datums are in the center of the cone, use these to place the rip To unbend assign the edge of the rip as the fixed geometry Now you should have a flat 😉
