Question

Tricks & Tips From the Conference

  • June 18, 2010
  • 2 replies
  • 1227 views

There was a tricks and tips session on Monday afternoon. It showed a way to expand the model tree to highlight a selected component that is in a sub-assembly. I cannot figure out what the steps are to do this from my notes. The posted PPT does not have a slide on this technique. Anybody see this or know how to do it? Is it WF5 only?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

A
ArnoldCollett12-Amethyst
12-Amethyst
June 18, 2010

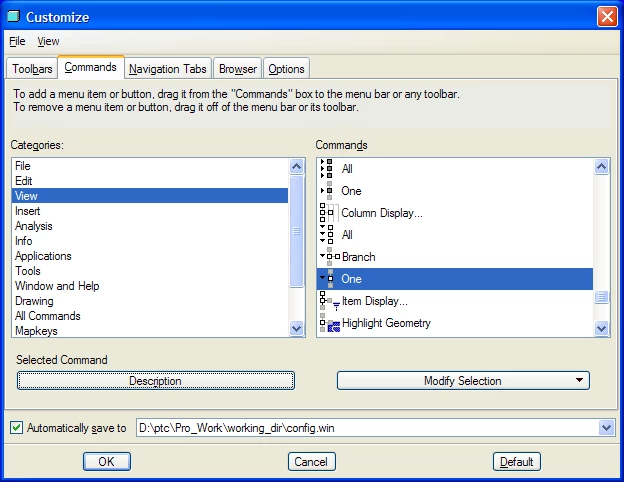

Is this what you're looking for? Put this button on a toolbar, then select a model on screen and click this button. The model tree will expand the model that you had selected. This is in WF3.

[cid:image001.png@01CB0EEF.64EA7250]

Hope this helps,
Arnold Collett
R
rmast14-AlexandriteAuthor
14-Alexandrite
June 18, 2010
Yes. This is it. I was looking under the "All Commands" instead of "View". Thanks.

Roger Mast
Haytools, Round Balers
Project Designer, CAD Coordinator
New Holland, PA
(717) 355-3561
-<">mailto:->
