Unfold Part that has Offset Lip

  • January 7, 2016
  • 1 reply
  • 3611 views

Is this a known issue?

When using Unfold Part, the Offset Lip does not unfold.

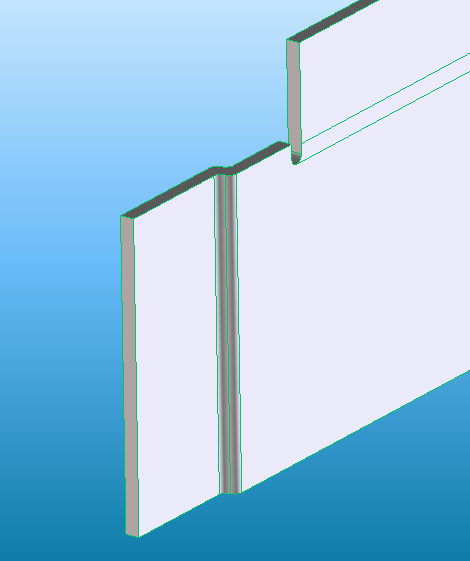

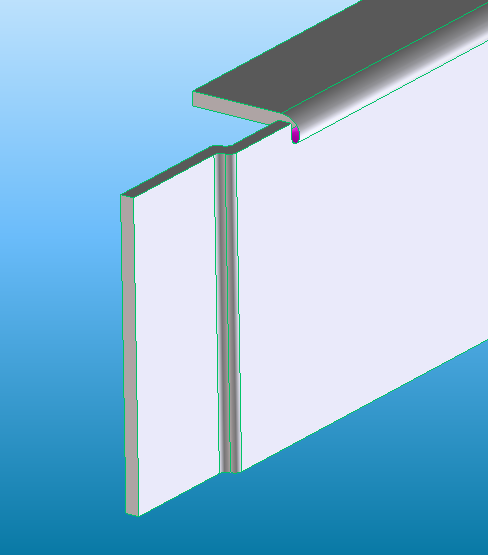

See attached pictures.



Mike



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

R
RaphMORIN16-Pearl
16-Pearl
January 7, 2016

How did you model this offset lip ? Usually when I design something like this it unfolds.

M
mmaenpaa1-VisitorAuthor
1-Visitor
January 7, 2016

Hi Raphaël,

I didn't do anything fancy, this was just a test part I made after a co-worker with a more complex part pointed out the problem.

It's just a flat face, then I added a lip, then used the Offset tool.

Mike

Creo Direct Elements 18.1

M
mmaenpaa1-VisitorAuthor
1-Visitor
January 7, 2016

I didn't see a way to upload a file here, so I posted it at Unfold Part that has Offset Lip - CoCreate User Forum

Mike
