3 point arc in sketcher preselects a point

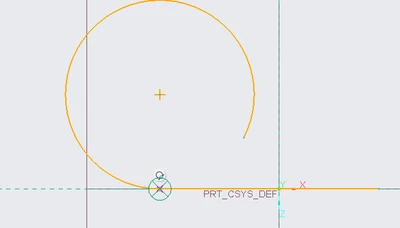

I have been running into this issue where when I select a point at the end of a line while doing a 3 point arc it does the following behaviour. It should be a pretty easy fix however I have no idea how to prevent it.


I am using creo parametric 9.0



kdirth
kdirthAnswer
21-Topaz I
Jul 21, 2023 12:19 PM UTC

If the behavior you are referring to is to make it tangent, you can move the mouse back to the start point, pause, then move perpendicular to the existing line to prevent automatic tangency.  The same movement also works when first starting the arc.

(view in My Videos)



There is always more to learn.
View in thread

4 replies

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
Jul 21, 2023 12:19 PM UTC

If the behavior you are referring to is to make it tangent, you can move the mouse back to the start point, pause, then move perpendicular to the existing line to prevent automatic tangency.  The same movement also works when first starting the arc.

(view in My Videos)



Translate
There is always more to learn.
    IbrahimTayyab14-AlexandriteAuthor
    14-Alexandrite
    Jul 22, 2023 12:20 AM UTC

    Thanks a lot this works perfectly and yes the behaviour I was mentioning is making it tangent, interesting I didn't realise that was what I was happening, I should pay more attention to the constraint symbols.

    Translate
    MartinHanak24-Ruby III
    24-Ruby III
    Jul 21, 2023 12:20 PM UTC
    @IbrahimTayyab wrote:

    I have been running into this issue where when I select a point at the end of a line while doing a 3 point arc it does the following behaviour. It should be a pretty easy fix however I have no idea how to prevent it.


    I am using creo parametric 9.0



    Hi,

    I do not understand the problem. Please describe it once again.

    Are you working in Sketcher environment?

    Translate
    IbrahimTayyab14-AlexandriteAuthor
    14-Alexandrite
    Jul 22, 2023 12:21 AM UTC

    I was able to find this thread as well explaining what kdirth described in a bit more detail in case anyone else was curious as well.
