3D degree symbol in sketch

  • January 20, 2020
  • 2 replies
  • 1997 views

I want to mill text in steel. The text is 30 "degrees"

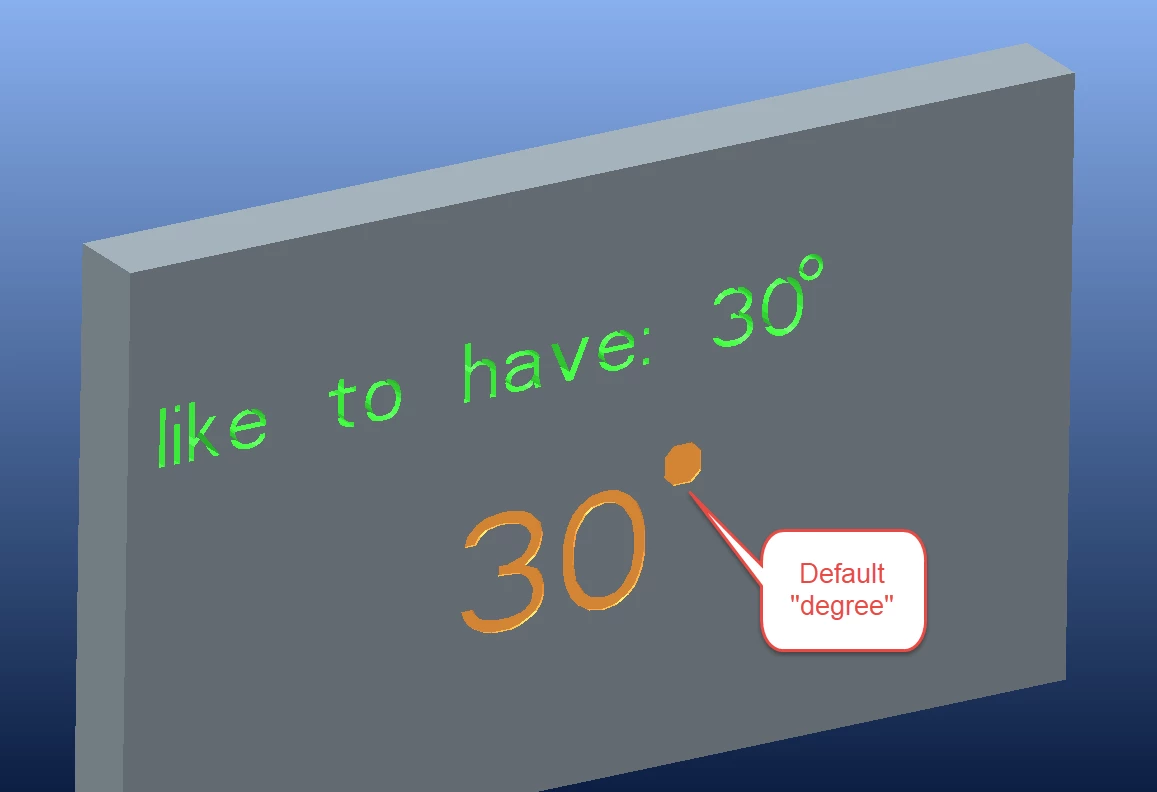

With the font3d (and all other 3d fonts) it gives a circle. But what I would like to have is a "tube" geometry, with inner and outer diameter. Of course I can add another feature but I would like to have it in the same sketch. See .png attached

Enhancement request? Or am I missing something?

It's for Creo 2.0 (with 4.0 coming up). Ruben

Best answer by Pettersson

Maybe just draw it with two circles? If you make the text right-justified you should be able to dimension the circle from the end of the text, so it's not dependent on the value for a correct position.

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
January 20, 2020
@RubenPas wrote:

I want to mill text in steel. The text is 30 "degrees"

With the font3d (and all other 3d fonts) it gives a circle. But what I would like to have is a "tube" geometry, with inner and outer diameter. Of course I can add another feature but I would like to have it in the same sketch. See .png attached

Enhancement request? Or am I missing something?

It's for Creo 2.0 (with 4.0 coming up). Ruben

Hi,

I guess it is possible to modify the degree character definition in the 3D font.

P
Pettersson15-MoonstoneAnswer
15-Moonstone
January 22, 2020

Maybe just draw it with two circles? If you make the text right-justified you should be able to dimension the circle from the end of the text, so it's not dependent on the value for a correct position.

R
RubenPas1-VisitorAuthor
1-Visitor
January 22, 2020

Yes, that is indeed the fast way that I took. I will take a look in the font, as Martin mentions.

Thanks guys! I appreciate your reaction. Ruben
