3D Pattern

Dear Community

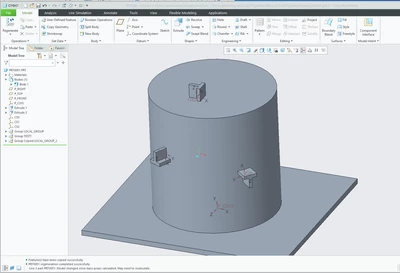

Is there a way to create a three dimensional patterns? Ideally with coordinate systems, for the orientation of the instances?


Best wishes



Alex

tbraxton
tbraxtonAnswer
22-Sapphire II
September 22, 2023

Yes, this is possible. I would use a table pattern to create this. When creating offet csys you will have access to 3X translations and 3X rotations for each new csys and you can use those dimensions to pattern the csys.



See video for a hacked table pattern example to do this.

(view in My Videos)

View in thread

3 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
September 22, 2023

Yes, this is possible. I would use a table pattern to create this. When creating offet csys you will have access to 3X translations and 3X rotations for each new csys and you can use those dimensions to pattern the csys.



See video for a hacked table pattern example to do this.

(view in My Videos)

Translate
    AlexK15-MoonstoneAuthor
    15-Moonstone
    September 22, 2023

    Thinks!

    Translate
    tbraxton
    tbraxton22-Sapphire II
    22-Sapphire II
    September 22, 2023

    Here is the example model from the video above. It is Creo 7.
