a folded metal sheet should be bent again

  • December 15, 2023
  • 2 replies
  • 2014 views

I use Creo Parametric 9.0 / folded metal sheet should be bent again



I have to construct a folded sheet metal strip with a 90° bend. The folding (180° tab) of the sheet is no problem, but the bending of the folded sheet.  Are there any ideas?





Best answer by kdirth

Create the 90° bend first.

Next create a 180° / 0R flange for each edge. (Hold shift to chain select the edge.)

This should unfold completely.




2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
December 15, 2023

Can you include a picture of what you are wanting to do?

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
December 15, 2023

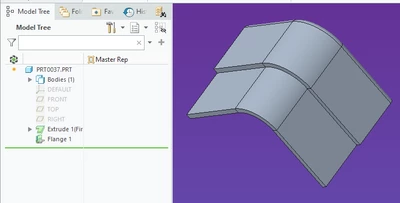

Something like this:


The hem has to be created after the bend.  Sheetmetal will not create a bend through a hem.

There is always more to learn.
    M
    mawi-18481-VisitorAuthor
    1-Visitor
    December 15, 2023

    Thanks for the quick reply.

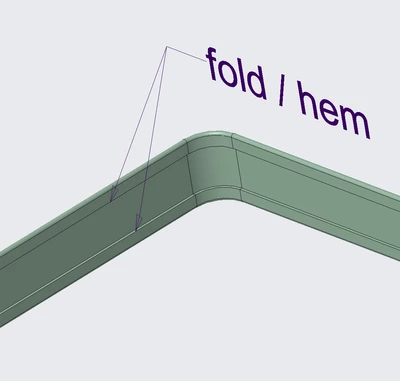

    Yes, something like your picture and something like this:


    Now I have constructed the hem (fold) as a profile and then bent it.

    But I can't completely unwind the sheet metal construction this way.





    kdirth
    21-Topaz I
    kdirth21-Topaz IAnswer
    21-Topaz I
    December 15, 2023

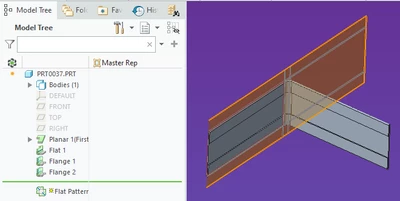

    Create the 90° bend first.

    Next create a 180° / 0R flange for each edge. (Hold shift to chain select the edge.)

    This should unfold completely.




    There is always more to learn.
