A Sketch that won't Extrude

  • December 7, 2016
  • 6 replies
  • 16953 views

Thanks for any help.

A student of mine has a sketch that he cannot extrude.  I have looked at it and cannot find anything wrong with the sketch  (ie. overlaps, disconnects).   We are using PtcCreo 3.0

Here is a copy of the part.

If someone could tell us why this won't extrude or even better, how we can do a check for future sketches,  that would be great.

Thanks. very much.

-Brett


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Hi,

I created Extrude feature and it failed. Then I displayed feature information - it contains following explanation ... Reasons for failure: This feature is defined with dimensions that are very small compared to the rest.

Then I changed Relative accuracy from 0.0012 to 0.0001. After successful regeneration, feature was displayed in graphics window.

MH

6 replies

S
svillafuerte1-Visitor
1-Visitor
December 7, 2016

Unfortunately not a lot of us can help with this file since it is an education version. Someone with an education license with have to help you out on this one. Sorry couldn't help.

M
mbonka2-Explorer
2-Explorer
December 7, 2016

Hello Brett Penza

or just share your sketch ( *.sec file). Hope we can open it under commercial licence.

Regards

Milan Bonka

StephenW
StephenW23-Emerald III
23-Emerald III
December 7, 2016

I can't open it either but it's possibly an accuracy issue if you have relatively small edges on a large sketch.

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
December 7, 2016

Hi,

I created Extrude feature and it failed. Then I displayed feature information - it contains following explanation ... Reasons for failure: This feature is defined with dimensions that are very small compared to the rest.

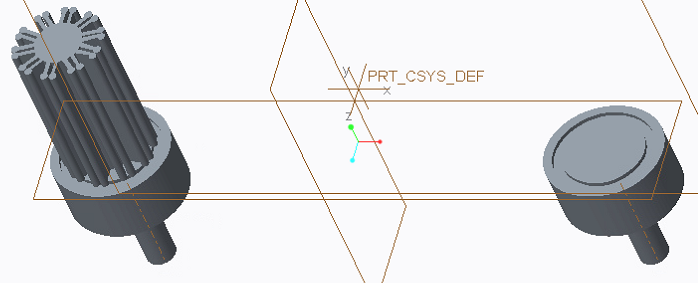

Then I changed Relative accuracy from 0.0012 to 0.0001. After successful regeneration, feature was displayed in graphics window.

MH

    B
    bpenza1-VisitorAuthor
    1-Visitor
    December 7, 2016

    Ah. Thanks very much.  That would explain it.

    Great.

    -Brett

    Dale_Rosema
    Dale_Rosema23-Emerald IV
    23-Emerald IV
    December 7, 2016

    If Martin's answer solve you issue, please mark it as correct for those who may search on this topic.
