About perpendicular projection (sketch)

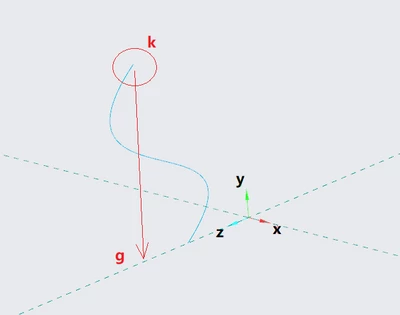

Q3:XZ plane is my sketch plane, How to get the“perpendicular projection point” G of point K ? I can't do that by the snap tool or project tool. (the "S" shape curve is drawn in the ZY sketch plane )






pausobAnswer
19-Tanzanite
May 13, 2022

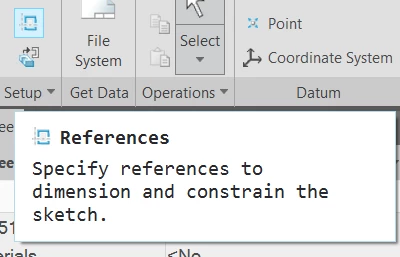

When sketching on the XZ plane, use the select references tool

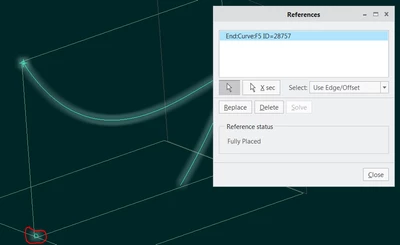

and add the endpoint of your curve that is on the YZ plane.  The projection of this point will appear at location "g" as a  reference point:




View in thread

4 replies

pausob19-TanzaniteAnswer
19-Tanzanite
May 13, 2022

When sketching on the XZ plane, use the select references tool




and add the endpoint of your curve that is on the YZ plane.  The projection of this point will appear at location "g" as a  reference point:




Translate
Walker1-VisitorAuthor
1-Visitor
May 13, 2022

Thank you for your guidance. I finally understand!

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
May 13, 2022

Here is a video explaining the method used in the model I posted.

(view in My Videos)

Translate
Walker1-VisitorAuthor
1-Visitor
May 13, 2022

Thank you for your guidance. I finally understand! Blame my poor basic knowledge. I really appreciate your patient guidance.
