Add "comments" to dimensions within sketch?

  • November 3, 2020
  • 2 replies
  • 1921 views

One function of Solidworks that I find very helpful is the ability to add "comments" to dimension text in the sketcher. Like you see in this link: https://forum.solidworks.com/thread/231992



So I'd like to be able to do something like what you see in the picture attached. Is this possible?








2 replies

R
rogerng5-Regular Member
5-Regular Member
November 3, 2020

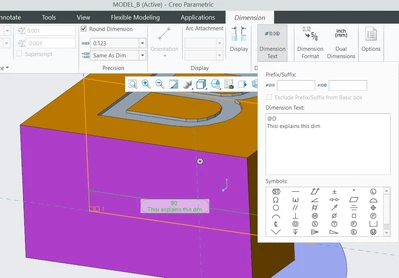

In the sketcher tool itself, i couldn't find any way. However, once dimension is placed. You can add text to it




    T
    TC_skidz1-VisitorAuthor
    1-Visitor
    November 3, 2020

    Oooh that's exactly how I would like it to look! Unfortunately that disappears when I open sketcher, and I need to be able to see it when I'm editing the sketch.

    Additionally, that text carries over to the drawing, which I don't want.

    tbraxton
    tbraxton22-Sapphire II
    22-Sapphire II
    November 3, 2020

    It is possible to add comments to sketcher relations. This would at least enable you to view the comments in sketch mode. This is not exactly what you want but may work.



    If this is something that is used more than once then then I would use a Notebook (layout). This would allow you to create exactly what you want and to declare it to any model when needed. It is capable of capturing the annotated dims and sketch geometry in the layout.
