Add sweep for a pipe bend with Creo DME 4 produces funny shape

  • May 23, 2014
  • 2 replies
  • 1973 views

Hi,

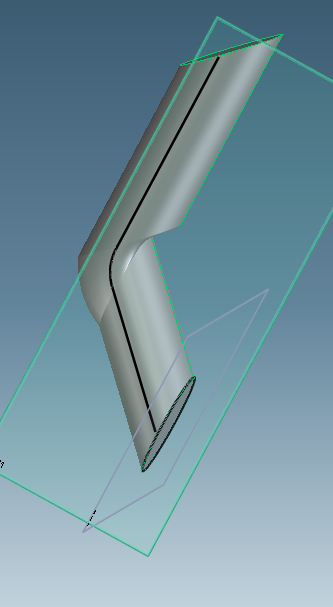

i'm trying to create a non 90deg pipe bend in Creo DME 4.0 and I keep getting an odd output:


Anyone know why this is and how to properly create a bend?

Thanks!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

whofer1-Visitor
1-Visitor
May 28, 2014

It looks like the radius in the sweep contour is smaller then the section dimension.
If you put the sweep contour on the outer side of the section (in the picture on the right side) it will work.

engineerscubicl1-Visitor
1-Visitor
June 26, 2014

It is because the cross section at start is not perpendicular to the spline geometry.
