Adding dimension while drawing

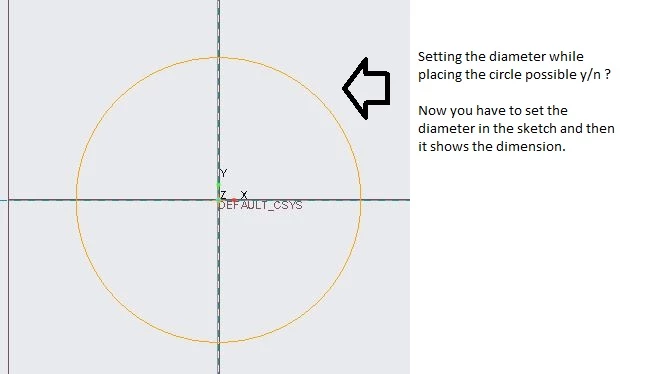

Is it possible to type the dimension f.e. on a circle while im drawing it?

Because in Creo 1.0 it was possible when i clicked on the symbol and set the dimension to e.g. "60" it changed it and i could place it on the center for example.

Mahesh_Sharma
Mahesh_SharmaAnswer
22-Sapphire I
Jul 19, 2019 3:09 PM UTC

@ClemensNader

When sketching circle weak dimension will appear after placing circle which can modify at any point in time and it was same in previous versions as well. But when sketching Circle in drawing, it will allow to define the radius when creating circle.

View in thread

7 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire IAnswer
22-Sapphire I
Jul 19, 2019 3:09 PM UTC

@ClemensNader

When sketching circle weak dimension will appear after placing circle which can modify at any point in time and it was same in previous versions as well. But when sketching Circle in drawing, it will allow to define the radius when creating circle.

Translate
Dodge10-Marble
10-Marble
Oct 9, 2024 3:17 PM UTC

So, there's really no way to type in a length or diameter/radius while I'm drawing a line or a circle? Feels like that should be an easy setting to turn on.



Translate
ER_1038254910-Marble
10-Marble
Jul 24, 2026 5:07 PM UTC

Some other CAD platforms have that function. Creo does not.

Translate
Hanbatista3-Newcomer
3-Newcomer
Jul 24, 2026 12:21 PM UTC

so, is this still like that or is there an option to activate dimensioning before placing circles and other geometry?

Translate
qiye7-Bedrock
7-Bedrock
Jul 25, 2026 12:23 AM UTC

This definitely needs improvement; the drawing module experience needs to be enhanced.

Translate
kdirth
kdirth21-Topaz I
21-Topaz I
Jul 27, 2026 1:08 PM UTC

Create an IDEA to let the PTC know you would like this functionality to be added to CREO.

Translate
There is always more to learn.
kdirth
kdirth21-Topaz I
21-Topaz I
Jul 27, 2026 1:20 PM UTC

They have added the config setting “sketcher_auto_scale_dimensions yes” in the config that allows you to start your sketch proportionally and it will scale the sketch with the first dimension changed.
