Hello.

It is possible to find a reference in the component of a main assembly?

Using SEARCH_MDL_REF I'll try to find a CSYS in the skeleton part of a assembly.

I know about SEARCH_MDL_REF ASSEMBLY....

But how to search in sub-components of this assembly?

Best answer by SamuelBrantner

Hi @YaroslavSin ,



that will also work, but you need to take a few steps to make it happen.

  • Skeleton must be in your active assembly
  • Skeleton needs a component parameter called BUW_OBJECT_ROLE value is of your choosing, but for this example I went with "skeleton"
  • Use SEARCH_SUBCOMP_REF to find the required reference.

See structure:




See also example code:





BEGIN_ASM_DESCR
	SEARCH_MDL_REF THIS_283 CSYS CS0 CSYS_FOUND
	SEARCH_SUBCOMP_REF ASSEMBLY SKELETON CSYS CS0 CSYS_TO_ALIGN
	CONFIG_ELEM

	ASSEMBLE THIS
		CSYS CSYS_TO_ALIGN CSYS_FOUND
	END_ASSEMBLE
END_ASM_DESCR





PFA also a litte demo component that you can use (Created in Creo 7).



I hope this is what you were looking for.



Greetings Sam



2 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
March 5, 2022

Have you attempted to include sub models in the search criteria?

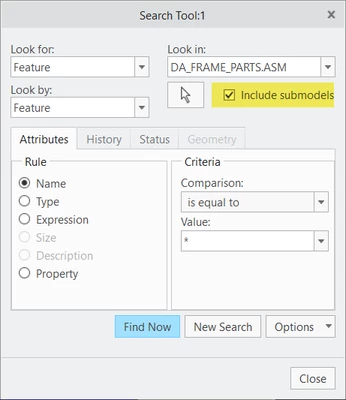

• Look in (Available in Assembly and Drawing mode only) Select the active model. If the scope of your selection is already defined, this field is not displayed. The arrow button allows you to select the desired model from the graphics window or the Model Tree. Click the Include submodels check box to search the sub-models of the Look In model.






    S
    SamuelBrantner16-Pearl
    16-Pearl
    March 7, 2022

    Hi @YaroslavSin ,

    what you want to do is possible.



    Here the Syntax:

    SEARCH_MDL_REF THIS_283 CSYS CS0 CSYS_FOUND

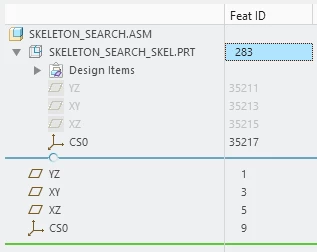

    In the elements Modeltree show column FEAT ID to get the required number after the THIS_ statement.




    Little Demo Tab file code:



    BEGIN_ASM_DESCR
	SEARCH_MDL_REF THIS_283 CSYS CS0 CSYS_FOUND
	CONFIG_ELEM

	ASSEMBLE THIS
		CSYS CSYS_TO_ALIGN CSYS_FOUND
	END_ASSEMBLE

END_ASM_DESCR


BEGIN_GUI_DESCR
	USER_SELECT	CSYS	CSYS_TO_ALIGN	1
END_GUI_DESCR





    Hope this helps.



    Greetings Sam







      Y
      YaroslavSin17-PeridotAuthor
      17-Peridot
      March 9, 2022

      Hello Samuel,

      I can found component in the equipment assy, but no success to find skeleton part in main assy.



      please clarify, THIS_# statement can search in the assembly into which the user places equipment part/assy ?

      S
      SamuelBrantner16-PearlAnswer
      16-Pearl
      March 9, 2022

      Hi @YaroslavSin ,



      that will also work, but you need to take a few steps to make it happen.

      • Skeleton must be in your active assembly
      • Skeleton needs a component parameter called BUW_OBJECT_ROLE value is of your choosing, but for this example I went with "skeleton"
      • Use SEARCH_SUBCOMP_REF to find the required reference.

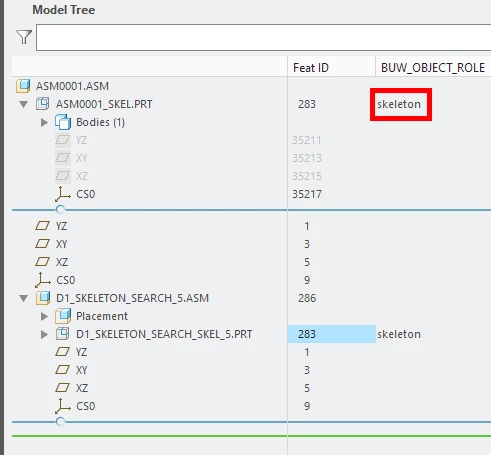

      See structure:




      See also example code:





      BEGIN_ASM_DESCR
	SEARCH_MDL_REF THIS_283 CSYS CS0 CSYS_FOUND
	SEARCH_SUBCOMP_REF ASSEMBLY SKELETON CSYS CS0 CSYS_TO_ALIGN
	CONFIG_ELEM

	ASSEMBLE THIS
		CSYS CSYS_TO_ALIGN CSYS_FOUND
	END_ASSEMBLE
END_ASM_DESCR





      PFA also a litte demo component that you can use (Created in Creo 7).



      I hope this is what you were looking for.



      Greetings Sam
