AFX Stock table not showing plates/Table Export option from model

  • January 23, 2026
  • 2 replies
  • 262 views

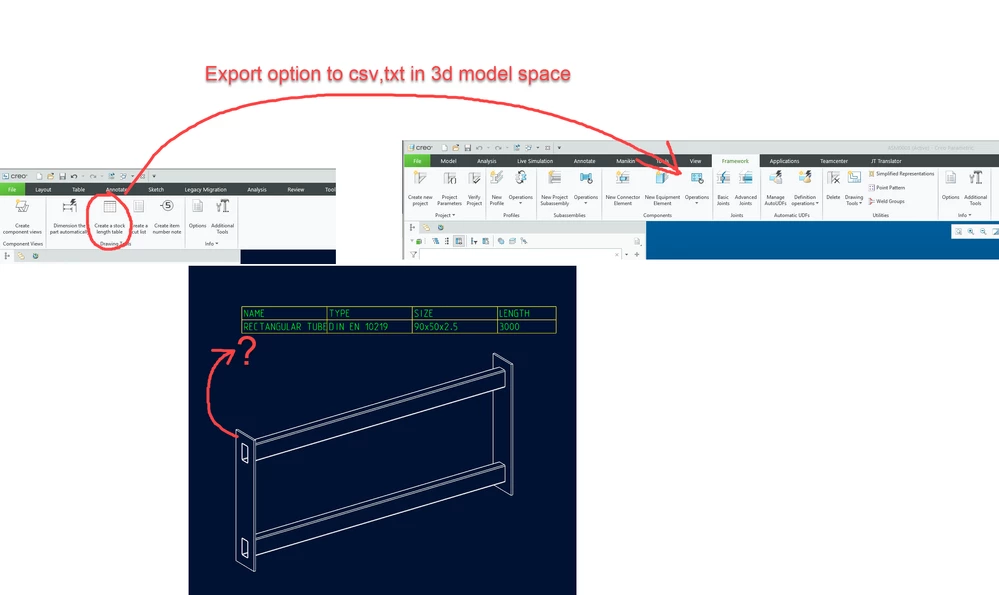

It seems like the stock table does not consider AFX created plates, only beams. Is this correct behavior?

Another thing I wonder is if there is any possibilities to export the stock length info from the model itself to a text format, so I don't need to go through a drawing to get this information?

Thanks!

Regards Yngve

(Creo Parametric 11.0.4.0)Stock Length table.png

Best answer by SamuelBrantner

Hi @YStrypet ,



You can create the feature in all models and then use the available parameters to create a custom BOM if you want to.



See here for usage of the function introduced in Creo 11:

https://www.youtube.com/watch?v=rORtc-91fh0



AFX also offers a outline calculation that can be activated with the following parameter:


This is also already active for most steel_construction_mm elements.



I hope this helps.





2 replies

Catalina
CatalinaCommunity Manager
Community Moderator
January 28, 2026

Hi @YStrypet

Thank you for your question.

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.



Best regards,

Catalina | PTC Community Moderator
S
SamuelBrantner16-Pearl
16-Pearl
February 2, 2026

Hi @YStrypet ,



unfortunately both of your requirements are not possible with AFX at the moment.

We do not know what is your base for your plates. With profiles this is clear. you have a defined section with a variable length.  Plates can be variable in all 3 directions and that is the reason why we do not add them to the mentioned table.



I hope this helps.



Y
YStrypet7-BedrockAuthor
7-Bedrock
February 6, 2026

Ok, thanks for the reply.! Could it it be an option to use a bounded box feature? I.e to establish limitation planes on the geometry and measure distance between for display in the table?



Regards

Yngve

S
SamuelBrantner16-PearlAnswer
16-Pearl
February 9, 2026

Hi @YStrypet ,



You can create the feature in all models and then use the available parameters to create a custom BOM if you want to.



See here for usage of the function introduced in Creo 11:

https://www.youtube.com/watch?v=rORtc-91fh0

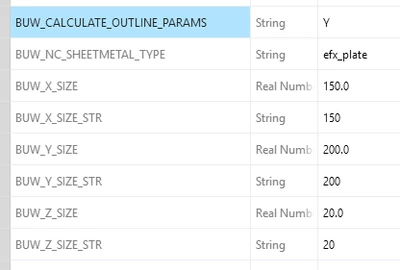

AFX also offers a outline calculation that can be activated with the following parameter:


This is also already active for most steel_construction_mm elements.



I hope this helps.
