Question

An imported TIFF file is over the 2D entities

  • January 9, 2026
  • 1 reply
  • 83 views
I am using Creo Parametric Release 9.0 and Datecode9.0.11.0
When I import a tiff image in my DRW the created dimensions, notes, and symbols appear above the image, while sketch entities appear below, so I have to increase the image's transparency to manage them.
I there a command for put under the image?

    1 reply

    Catalina
    CatalinaCommunity Manager
    Community Moderator
    January 14, 2026

    Hi @PaoloValtorta

    Thank you for your question.

    Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

    Also, feel free to add any additional information you think might be relevant. It sometimes helps to have screenshots to better understand what you are trying to do.



    Best regards,

    Catalina | PTC Community Moderator
    P
    PaoloValtorta8-GravelAuthor
    8-Gravel
    January 15, 2026

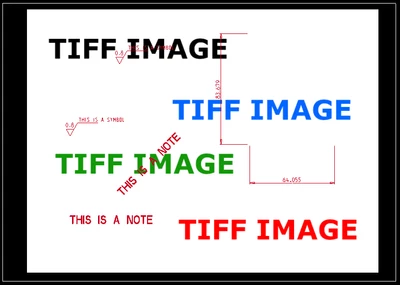

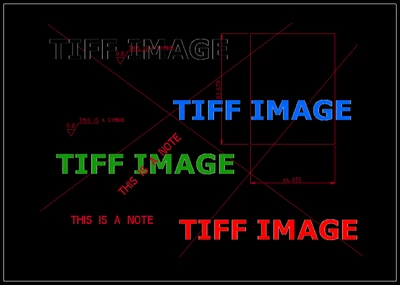

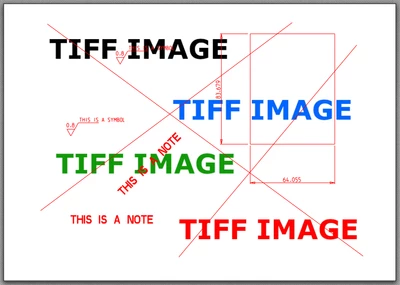

    I explain my problem with a screenshot.

    I import in my DRW a TIFF image and add various 2D entity (lines, notes, quotes, symbols, ecc.).

    All entities are visible over the TIFF but only the lines are under it.




    If I modify the transparency level of the image can I see they.




    When I export my DRW in PDF is all ok.




    A partial solution, but only if the TIFF is of good quality, is to set the transparency color to the background of the TIFF in such a way as to remove at least that.




    Thanks,

    Paolo.
