Annotations tab gets disabled while working on a activated part in assembly in creo 5.0.1.0

  • January 1, 2020
  • 1 reply
  • 2593 views

Hello All,



I am trying to create annotations in Assembly, by activating a certain part in the assembly.

In which I found that Annotations Tab got Disabled when a part is active,

can you tell me how to create annotations in this scenario?

Best answer by remy

Hi  and HNY 2020



After performing regression tests down to Creo 2.0, the behavior is consistant accross all versions: it is not permitted to create stand alone annotations in the context of an assembly when a component has been activated.



The steps of the scenarios:

  1. Create an assembly
  2. Create a component in the assembly
  3. Activate the component
  4. Browse to the Annotate tab

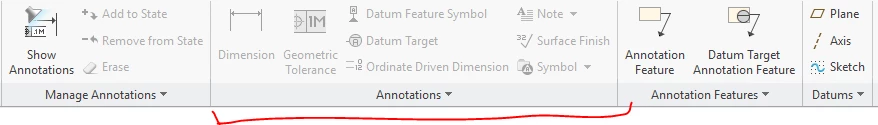

Observed: the Annotations group is grey



The solution consists either to:

  • open the component in part mode
  • remain in the Assembly Component Activate mode and create an Annotation Feature. Know the difference between Stand Alone Annotations vs Annotation Feature with this article from the knowledge base: https://www.ptc.com/en/support/article?n=CS293596



If you feel like this workflow should be permitted, you may file an enhancement request by following these instructions : https://www.ptc.com/en/support/article?n=CS67713

1 reply

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald III
23-Emerald III
January 2, 2020

Is the annotation in the model or a drawing?

    P
    ptechnologies1-VisitorAuthor
    1-Visitor
    January 3, 2020

    I want to create the annotation in the model

    R
    remy21-Topaz IAnswer
    21-Topaz I
    January 7, 2020

    Hi  and HNY 2020



    After performing regression tests down to Creo 2.0, the behavior is consistant accross all versions: it is not permitted to create stand alone annotations in the context of an assembly when a component has been activated.



    The steps of the scenarios:

    1. Create an assembly
    2. Create a component in the assembly
    3. Activate the component
    4. Browse to the Annotate tab

    Observed: the Annotations group is grey



    The solution consists either to:

    • open the component in part mode
    • remain in the Assembly Component Activate mode and create an Annotation Feature. Know the difference between Stand Alone Annotations vs Annotation Feature with this article from the knowledge base: https://www.ptc.com/en/support/article?n=CS293596



    If you feel like this workflow should be permitted, you may file an enhancement request by following these instructions : https://www.ptc.com/en/support/article?n=CS67713
