Question

Anyone using RSDlite for 2D schematics?

  • June 14, 2011
  • 2 replies
  • 1781 views

Currently our wiring diagrams our done in a separate 2D CAD program. I doubt we would ever use the full funtionality of RSD and linking schematics to 3D models. Just need to create simple 2D schematics. Was wanting to get a feel if anyone else is doing this and what the learning curve is to using this software.



Thanks,


David


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

P
paul.forderhase1-Visitor
1-Visitor
June 14, 2011
Steep. Don't do it unless you need to drive 3D models!

Paul Forderhase | Principal Mechanical Engineer | VSEA | 2601 Mc Hale ct |
Ste 160 | Austin, TX | 78758 | 512-617-8125|fax 512-617-8210



J
JimBarrettSmith5-Regular Member
5-Regular Member
June 14, 2011
David



If you already have a license of RSDlite, I recommend you upgrade your license pack so that you can download Creo Schematics 1.0.

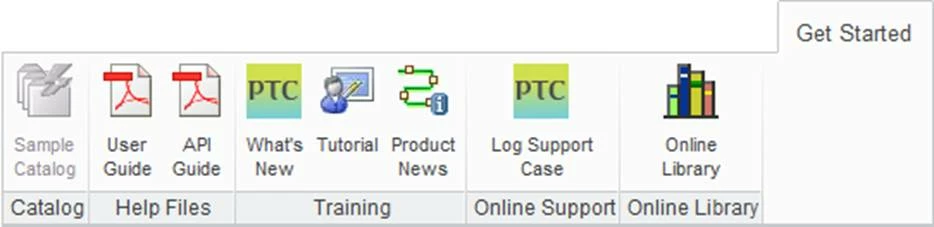

When you start Creo Schematics select the get started tab and click on Tutorial. The tutorial will teach you how to create wiring diagrams, create catalog symbols and setup the working environment.









PTC have invested heavily in improving the usability of schematic design and with Creo Schematics the learning curve should reduced when compared to previous release of Routed Systems Designer. If you decide to get started with Routed Systems Designer you will not benefit from

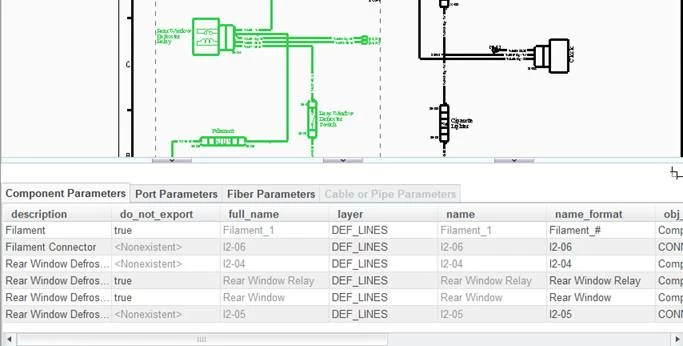

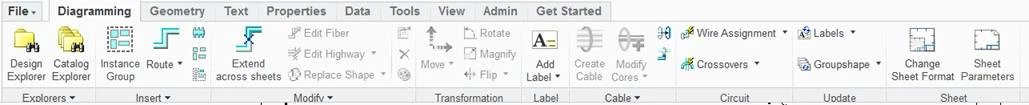

· Enhanced Usability

o Ribbon UI

§

o Pre-Selection highlighting

§

o Drag handles

§

o Sheet tabs

§

o Embedded parameters

§

· Improved Interoperability

o Import PCB signal information

§

o Import ad-hoc port information from csv

§

o Drive Wildfire 3.0 - 5.0 and Creo 1 cabling and piping design



If you do struggle with Creo Schematics I would like to receive your feedback\comments so that PTC can continue to improve the user experience.



All the best



Jim
