Are threads visible in tapped holes?

  • August 19, 2023
  • 2 replies
  • 1301 views

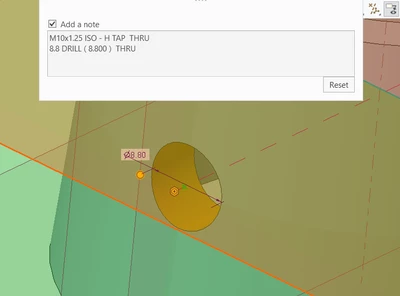

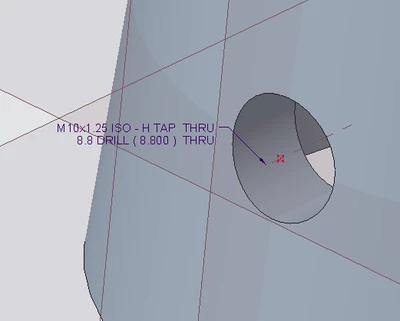

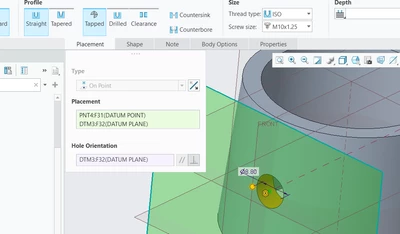

I have created this tapped hole however I cannot see the threads.










Creo parametric 9.0 Student version





Best answer by tbraxton

The threads are represented by a surface quilt. The thread geometry is not created when using the standard tapped hole features.

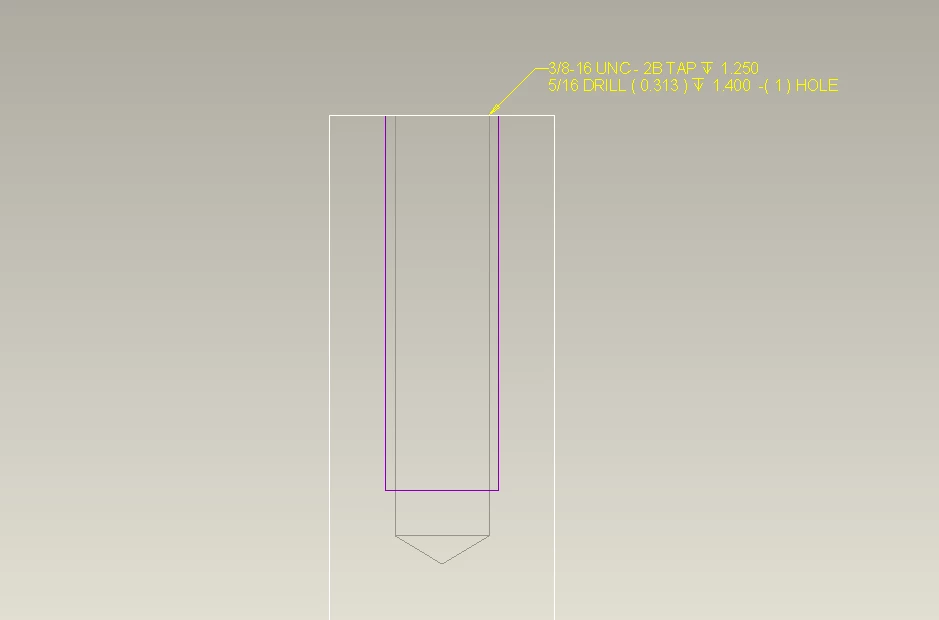

Display your model with hidden lines and you should see the thread quilt as seen below (purple).






2 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
August 19, 2023

The threads are represented by a surface quilt. The thread geometry is not created when using the standard tapped hole features.



Display your model with hidden lines and you should see the thread quilt as seen below (purple).






    I
    IbrahimTayyab14-AlexandriteAuthor
    14-Alexandrite
    August 19, 2023

    Thank you for the clarification.
